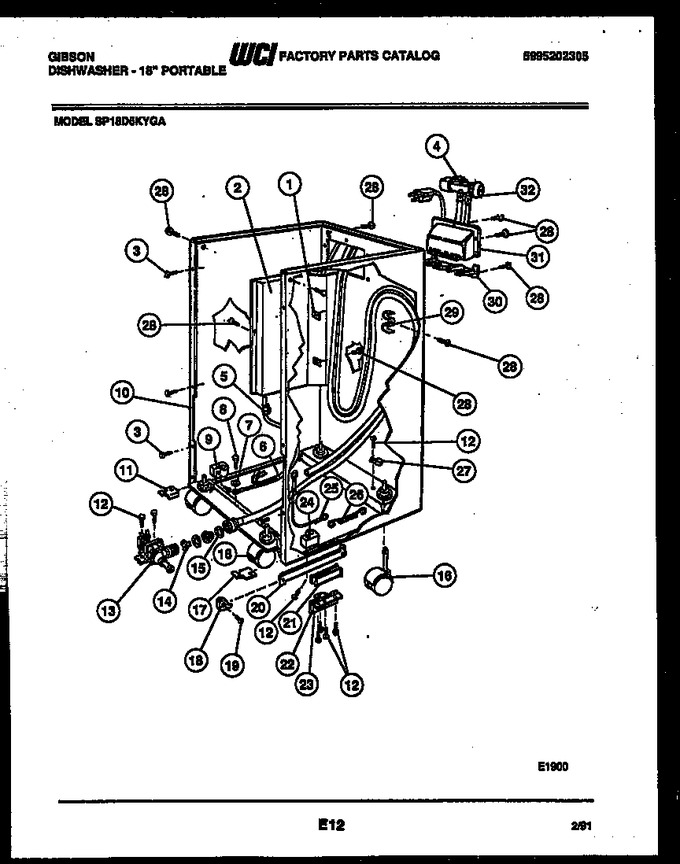

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300807612 | Speednut |
|
- | |||||
| 2 | 5300807572 | Cord Guide |
|
- | |||||
| 3 | 5300806539 | Screw 10-24 X 7/8`` (4) |
|
- | |||||
| 4 | 5300807498 | Pressure Relief Valve Kit |
|
- | |||||
| 5 | 5300807573 | Bushing |
|
- | |||||
| 6 | 5300805046 | Power Cord |
|
- | |||||
| 7 | 5300807373 | Washer |
|
- | |||||
| 8 | 5300807951 | Screw - 10 - 32 X 1/2`` |
|
- | |||||
| 9 | 5300807575 | Guide Block-lh |
|
- | |||||
| 10 | 5300808588 | Frame Assly-almond |
|
- | |||||
| 11 | 5300807577 | Shim-lh |
|
- | |||||
| 12 | 5300807004 | Screw 10b X 1/2`` (13) |
|
- | |||||
| 13 | 5300808667 | Water Valve Kit-includes Key 14 |
|
- | |||||
| 14 | 5300808469 | Flow Washer |
|
- | |||||
| 15 | 5300800787 | Washer |
|
- | |||||
| 16 | 5300809661 | Casters (4) |
|
- | |||||
| 17 | 5300807576 | Shim-rh |
|
- | |||||
| 18 | 5300807618 | Counterbalance Arm Shoe (2) |
|
- | |||||
| 19 | 5300802860 | Screw 8 X 3/8`` (2) |
|
- | |||||
| 20 | 5300807578 | Counterbalance Arm |
|
- | |||||
| 21 | 5300807579 | Bracket Liner (2) |
|
- | |||||
| 22 | 5300807580 | Arm Bracket-lh |
|
- | |||||
| 23 | 5300807581 | Arm Bracket-rh |
|
- | |||||
| 24 | 5300807574 | Guide Block-rh |
|
- | |||||
| 25 | 5300807582 | Cable (2) |
|
- | |||||
| 26 | 5300807583 | Counterbalance Arm Spring |
|
- | |||||
| 27 | 5300804426 | Clamp |
|
- | |||||
| 28 | 5300807501 | Screw 8 X 1/2`` (10) |
|
- | |||||
| 29 | 5300808439 | Clamp |
|
- | |||||
| 30 | 5300807584 | Back Lower Pocket |
|
- | |||||
| 31 | 5303208566 | Back Upper Pocket |
|
- | |||||
| 32 | 5300807586 | Hose & Coupler Assy |
|
- |
