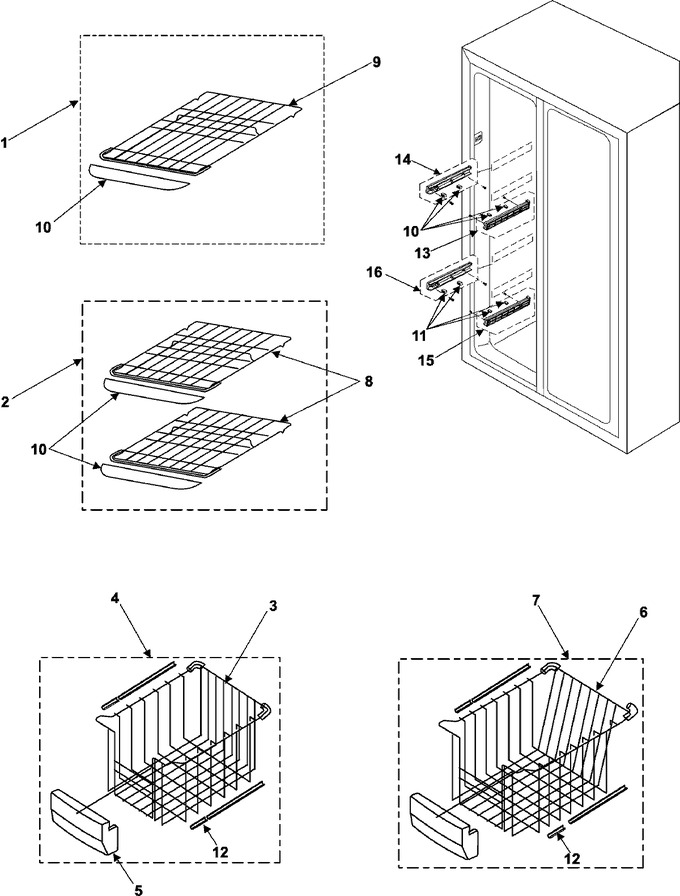

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00698F		Assy Shelf Wire-fre Mid		Appelez-nous	-
2	DA97-00699F		Assy Shelf Wire-fre Low		Appelez-nous	-
3	DA61-00777D		Case-wire Basket,up		Appelez-nous	-
4	DA97-00701F		Assy Case-wire Basket,up		Appelez-nous	-
5	DA63-01290B		Cover-wire Basket;a-top,hips,c		Appelez-nous	-
6	DA61-02178A		Case-basket Wire,big,a-top M/c		Appelez-nous	-
7	DA97-02817A		Assy Case-wire Basket,low;bby		Appelez-nous	-
8	DA67-00765D		Shelf Wire-fre Low		Appelez-nous	-
9	DA67-00766D		Shelf Wire-fre Mid		Appelez-nous	-
10	DA63-02079A		Grommet-rail(a,b-type);a-top,n		Appelez-nous	-
11	DA63-02080A		Grommet-rail(c-type);a-top,ny-		Appelez-nous	-
12	DA64-00676E		Trim-wire Basket,b;ad,pvc,-,-,		Appelez-nous	-
13	DA97-00730F		Assy Rail-basket R(b-type);a-t				$ 8.60
14	DA97-00731F		Assy Rail-basket L(b-type);a-t		Appelez-nous	-
15	DA97-00730G		Assy Rail-basket R(c-type);a-t		Appelez-nous	-
16	DA97-00731G		Assy Rail-basket L(c-type);a-t		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
