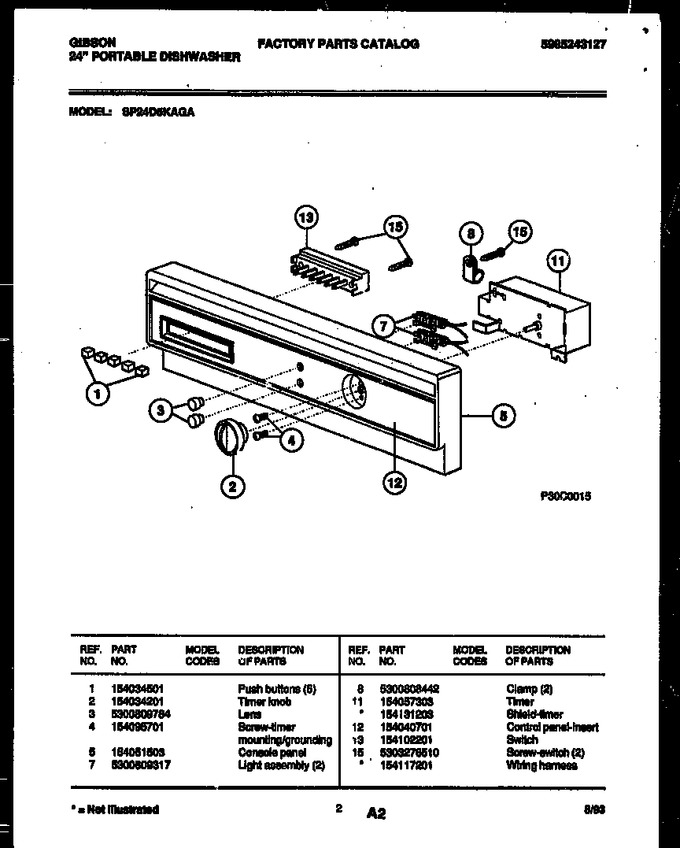

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154034501 | Push Buttons (5) |
|
- | |||||
| 2 | 154034201 | Timer Knob |
|
- | |||||
| 3 | 5300809784 | Lens |
|
- | |||||
| 4 | 154095701 | Screw-timer Mounting/grounding |
|
$ 10.34 | |||||
| 5 | 154051503 | Console Panel |
|
- | |||||
| 7 | 5300809317 | Light Assembly (2) |
|
- | |||||
| 8 | 240396801 | Clamp (2) (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 11 | 154057303 | Timer |
|
$ 384.14 | |||||
| 12 | 154040701 | Control Panel-insert |
|
- | |||||
| 13 | 154102201 | Switch |
|
- | |||||
| 15 | 5303276510 | Screw-switch (2) |
|
- | |||||
| *61083 | 154117201 | Wiring Harness |
|
- | |||||
| 11A | 154131203 | Shield-timer (non-illustrated) |
|
- |
