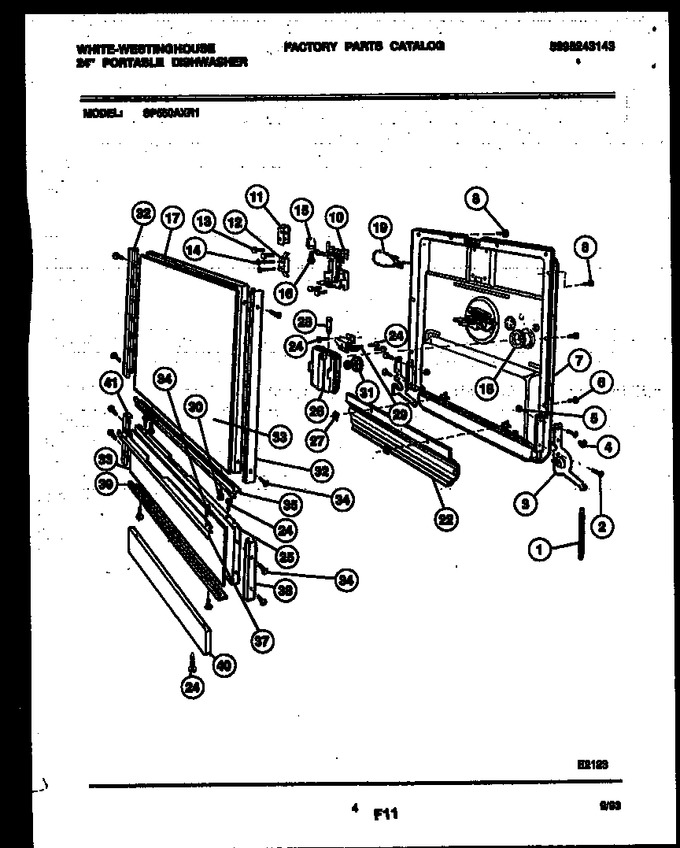

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154111501		Door Spring				$ 56.60
2	154093301		Screw-10-24 X 5/8`` (4)			Immediately	$ 2.12
3	5303270031		Arm Assembly-rh				$ 79.75
4	5300805884		Spring Pad (2)		Appelez-nous	-
5	154079601		Nut (4)				$ 0.41
6	5300809055		Screw-8 X 7/16``				$ 1.21
7	5300809931		Door Assembly		Appelez-nous	-
8	5300808749		Screw-8 X 5/8``(6)		Appelez-nous	-
10	5303270032		Latch Assembly		Appelez-nous	-
11	5300809933		Switch Cover		Appelez-nous	-
12	5300809934		Switch				$ 129.57
13	218781101		Screw-8a X 5/8`` (4)   (Replaces: 154026501)				$ 15.60
14	5300808618		Screw-6-32 X 1`` (2)		Appelez-nous	-
15	5300808712		Latch Knob				$ 31.71
16	5300808715		Screw-8-32 X 5/16`` (4)		Appelez-nous	-
17	5303299935		Door Panel		Appelez-nous	-
18	5300805631		Dispenser Grommet				$ 6.29
22	5300809773		Baffle Seal		Appelez-nous	-
23	154026601		Speednut (2)				$ 25.67
24	5300807501		Screw-8 X 1/2`` (8)		Appelez-nous	-
25	5303299936		Access Panel-white		Appelez-nous	-
26	5300806753		Body Assembly				$ 69.93
28	5300809898		Plunger				$ 36.49
29	5300809782		Bi-metal Assembly				$ 47.51
30	5300809696		Screw-8 X 1/2`` (2)		Appelez-nous	-
31	5303943094		Fill-plug		Appelez-nous	-
32	5303943080		Door Panel Trim-rh		Appelez-nous	-
33	5300808908		Door & Access Panel Inserts-almond & Black		Appelez-nous	-
34	5300809696		Screw-8 X 3/8`` (10)		Appelez-nous	-
35	154103603		Door Panel Trim-bottom		Appelez-nous	-
37	5300808346		Access Panel Trim-top		Appelez-nous	-
38	5300809914		Access Panel Trim-rh		Appelez-nous	-
39	5300808521		Access Panel Trim-bottom		Appelez-nous	-
40	5300808522		Toe Plate		Appelez-nous	-
41	5300809915		Access Panel Trim-lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
