SELECT A DIAGRAM

01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

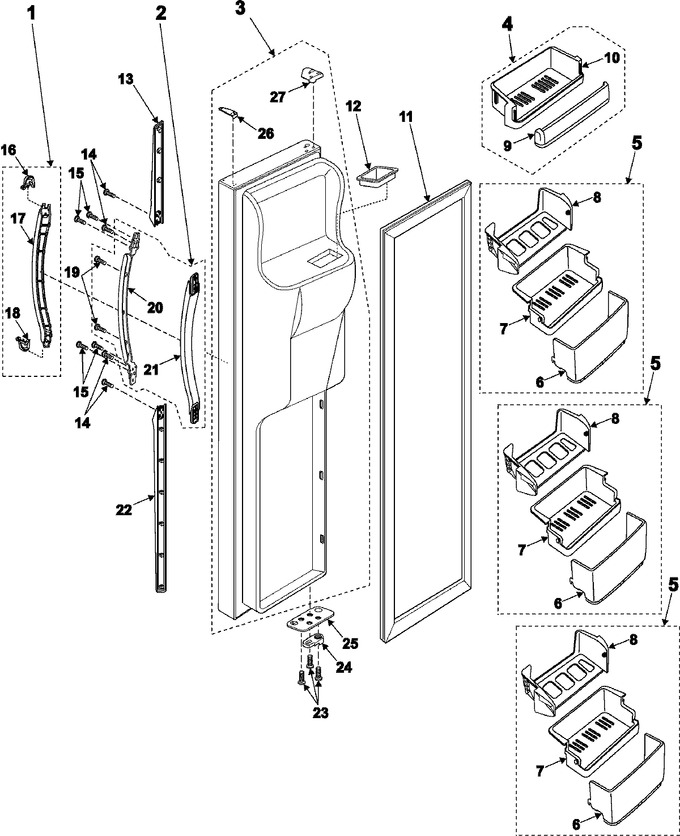

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00704M		Assy-handle Mid Front;rs25,a-t		Appelez-nous	-
2	DA97-00703G		Assy Handle Rear;a-top,assy,-,		Appelez-nous	-
3	DA91-01766A		Freezer Door Foam Assy (blk)		Appelez-nous	-
4	DA97-00695D		Assy Guard-fre Up(85);a-top,do		Appelez-nous	-
5	DA97-00694E		Assy Guard-fre Tilt(85);a-top,		Appelez-nous	-
6	DA63-00834B		Guard-fre Low,b				$ 17.27
7	DA63-00833D		Guard-fre Low,a(85);a-top,hips		Appelez-nous	-
8	DA63-00835A		Guard-supt		Appelez-nous	-
9	DA63-00832A		Guard-fre Up,b		Appelez-nous	-
10	DA63-00831C		Guard-fre Up,a(85);a-top,hips,		Appelez-nous	-
11	DA97-01800J		Assy-gasket Door,fre;2004 Bby,		Appelez-nous	-
12	DA67-00513A		Cap-chute Ice		Appelez-nous	-
13	DA64-00418H		Handle-trim Upp		Appelez-nous	-
14	6002-000613		Screw-tapping			Immediately	$ 0.85
15	6002-000213		Screw-tapping			Immediately	$ 0.93
16	DA64-00416F		Handle-trim Connect Upp;rs25,a		Appelez-nous	-
17	DA64-00413K		Handle-mid Front		Appelez-nous	-
18	DA64-00415F		Handle-trim Connect Low;rs25,a		Appelez-nous	-
19	6002-000227		Screw-tapping				$ 1.66
20	DA61-00309A		Reinf-handle Mid		Appelez-nous	-
21	DA64-00414H		Handle-mid Rear		Appelez-nous	-
22	DA64-00417H		Handle-trim Low		Appelez-nous	-
23	6001-000716		Screw-machine				$ 0.85
24	555555		Cam Hinge-riser,low   (Replaces: DA66-90112C)				$ 151.94
25	DA61-00430A		Stopper Door				$ 14.72
26	Y00000000		See Note Part No. Da67-00523 (all Models)currently Is Not Available		Appelez-nous	-
27	Y00000000		See Note Part No. Da67-00593 (all Models)currently Is Not Available		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
