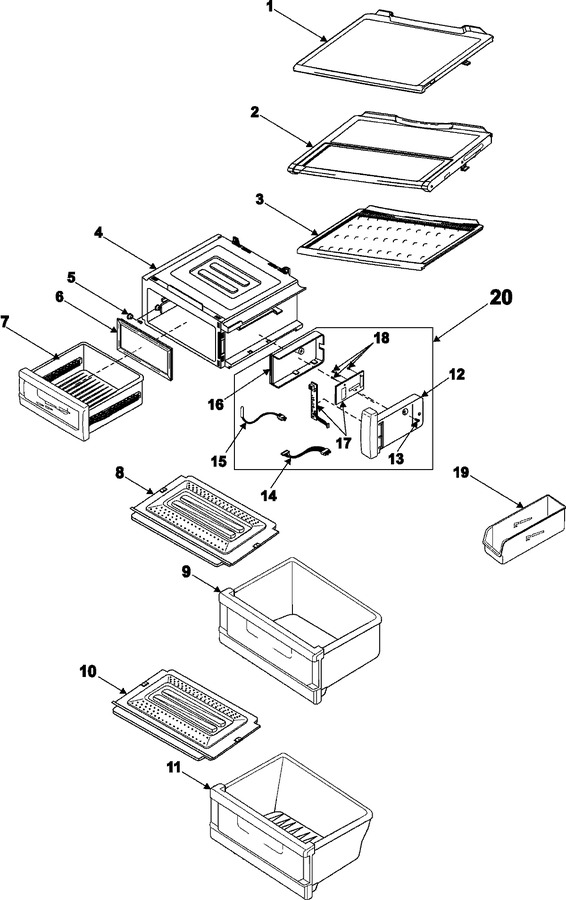

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA67-00533F		Shelf Ref-up(650);best-buy,pp,				$ 99.45
2	DA97-00199M		Assy Shelf-fold;a-top,xaa,cool		Appelez-nous	-
3	DA67-00687A		Shelf Ref-low				$ 74.62
4	DA97-00320U		Assy Case-convertible(650);bes		Appelez-nous	-
5	DA66-00151A		Roller-front		Appelez-nous	-
6	DA63-00820B		Gasket-convertible		Appelez-nous	-
7	555555		Assy Tray-convertible(650);a-t   (Replaces: DA97-00371K)				$ 151.94
8	DA63-00864C		Cover-veg Up(650);a-top,hips,c		Appelez-nous	-
9	DA97-00144P		Assy Case-veg,up(650);a-top,ex		Appelez-nous	-
10	DA63-00865C		Cover-veg Low(650);a-top,hips,				$ 55.43
11	DA97-00148P		Assy Case-veg,low(650);a-top,e		Appelez-nous	-
12	DA63-00800F		Cover-control Convertible;a-to		Appelez-nous	-
13	6002-001335		Screw-tapping;bh,+,1,m4,l12,da		Appelez-nous	-
14	DA39-00215A		Wire Harness		Appelez-nous	-
15	DA32-10109X		Sensor Assy				$ 25.99
16	DA61-00277B		Case-control Convert,a		Appelez-nous	-
17	DA41-00108A		Pba Sub				$ 129.69
18	6002-000471		Screw-tapping;th,+,1,m4,l12,-,				$ 0.85
19	DA67-40250E		Tray-utility				$ 56.08
20	DA97-00370D		Assy Case-converitible,sub(650		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
