01 - Enclosure Assembly


02 - Fountain


03 - Freezer Compartment


04 - Freezer Door


05 - Freezer Shelves


06 - Hinges


07 - Ice Bin


08 - Icemaker


09 - Machine Compartment & Cabinet Back


10 - Refrigerator Compartment


11 - Refrigerator Door


12 - Refrigerator Shelves

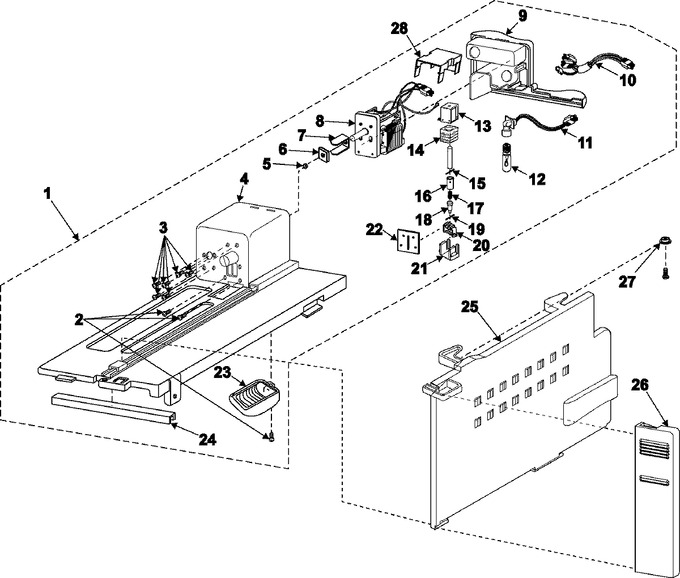

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-00705A		Assy Case-auger		Appelez-nous	-
2	6002-000471		Screw-tapping;th,+,1,m4,l12,-,				$ 0.85
3	DA60-00001B		Screw-special;-,hex,-,-,l8.3,-				$ 1.66
4	DA61-00262E		Case-motor Auger		Appelez-nous	-
5	DA60-30108A		Nut-hex				$ 5.57
6	DA71-00163A		Fixer-nut			Immediately	$ 20.08
7	DA70-20017A		Plate-d/auger Disp				$ 34.51
8	DA31-00039F		Motor Geard		Appelez-nous	-
9	DA63-00793B		Cover-motor Auger(650);a-top,h		Appelez-nous	-
10	DA96-00036A		Assy-harness Sub,em		Appelez-nous	-
11	DA47-00112C		Lamp Holder		Appelez-nous	-
12	WPA3073101		Lamp-incandescent;130v,-,30w,b   (Replaces: 4713-001197)			Immediately	$ 10.90
13	DA74-40151G		Valve-solenoid			Immediately	$ 122.54
14	DA72-60348A		Seal-foam Pe		Appelez-nous	-
15	DA60-90137A		Pin-spring;sts304,-,l22,sr-s71		Appelez-nous	-
16	DA63-90008A		Bush-solenoid		Appelez-nous	-
17	DA61-20140A		Spring-solenoid				$ 0.85
18	DA66-90003A		Plnger-solenoid		Appelez-nous	-
19	DA60-90137B		Pin-spring;sts304,-,l16,sr-s71		Appelez-nous	-
20	DA65-20107A		Saddle-solenoid		Appelez-nous	-
21	DA61-60001A		Slider-solenoid Disp				$ 1.66
22	DA73-00168A		Rubber-solenoide		Appelez-nous	-
23	DA63-00785A		Cover Lamp-fre,disp		Appelez-nous	-
24	DA61-00239A		Support-case Motor Auger		Appelez-nous	-
25	DA67-00763B		Partition-cool(650);a-top,hips		Appelez-nous	-
26	DA63-00784D		Cover-cool;a-top,hips,cool-whi		Appelez-nous	-
27	DA61-01797A		Fixer Grommet-door;t3-pjt,abs,				$ 0.85
28	Y00000000		See Note Part No. Da63-02012a Currently Not Available.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
