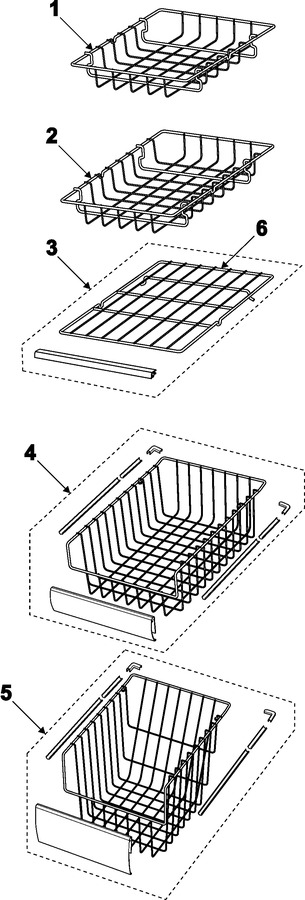

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA67-01022B		Shelf Wire-fre Upp		Appelez-nous	-
2	DA67-01025A		Shelf Wire-fre Low(half Basket				$ 87.26
3	DA97-02037B		Assy Shelf Wire-fre Low;ad,pe-				$ 64.59
4	DA67-01023B		Shelf Wire-fre Low				$ 67.11
5	DA61-01677A		Case-basket Fre Up		Appelez-nous	-
6	DA61-01624A		Case-basket Fre		Appelez-nous	-
NI	DA63-00202B		Grommet-rail				$ 2.03
NI	DA97-02059A		Assy Rail-basket,r;ad,-,-,-,-,		Appelez-nous	-
NI	DA97-02061A		Assy Rail-basket,l;ad,-,-,-,-,		Appelez-nous	-
