SELECT A DIAGRAM

01 - Cover


03 - Door

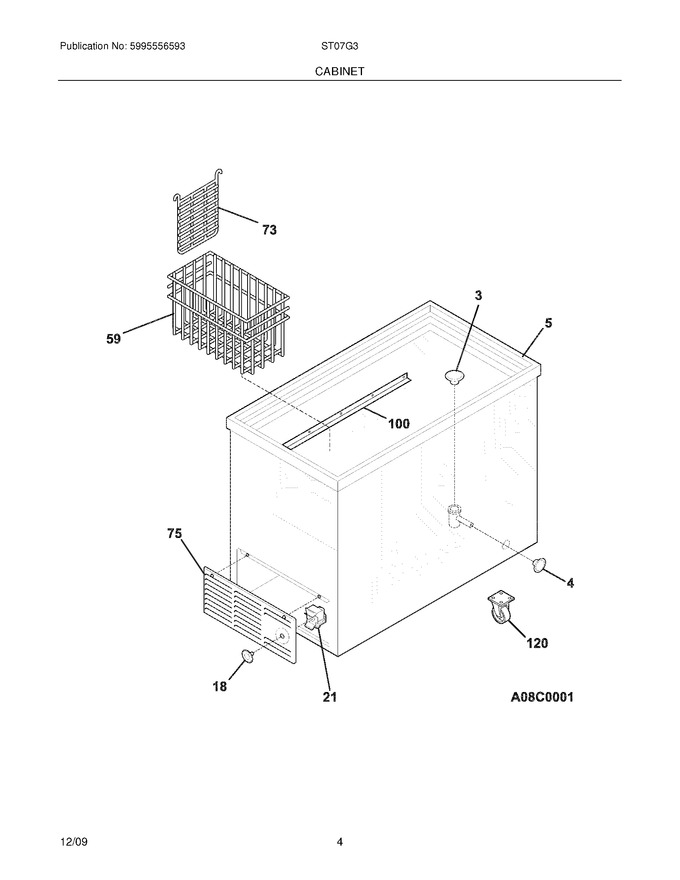

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013600		Plug-drain,exterior				$ 9.98
5	216620502		Cabinet,chest Freezer		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
59	297118400		Basket		Appelez-nous	-
73	297118001		Divider,basket		Appelez-nous	-
75	216782000		Panel-access,white		Appelez-nous	-
100	216654200		Track-basket		Appelez-nous	-
120	216621000		Caster		Appelez-nous	-
F21	5304496559		Control-temperature   (Replaces: 216787700)			Immediately	$ 44.18
NI	216360600		Thermometer		Appelez-nous	-
NI	216649700		Caster Pack,4 Casters ,wrench ,16 Screws		Appelez-nous	-
NI	240494001		Plug,white   (Replaces: 297095300)			Immediately	$ 18.20
NI	216734501		Nameplate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
