SELECT A DIAGRAM

01 - Cover


03 - Door

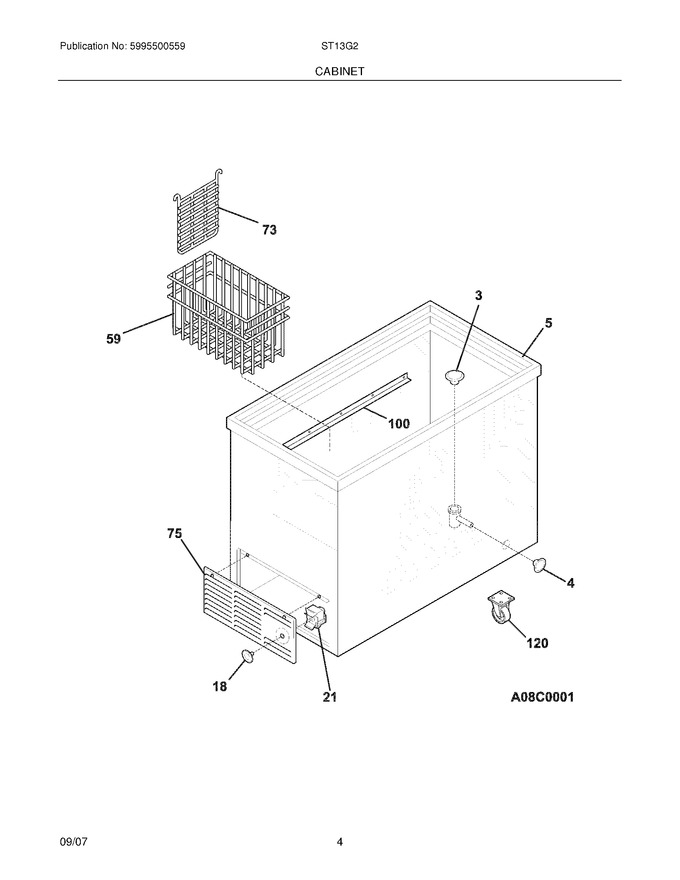

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013600		Plug-drain,exterior				$ 9.98
5	216620504		Frame,outer		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
21	216714601		Control Temperature				$ 143.87
59	297117900		Basket,chest Freezer		Appelez-nous	-
73	297118000		Divider,basket		Appelez-nous	-
75	216034301		Panel-access, White				$ 103.01
100	216995207		Track-basket		Appelez-nous	-
120	216621000		Caster		Appelez-nous	-
NI	216997400		Support,track-basket				$ 10.61
NI	216360600		Thermometer		Appelez-nous	-
NI	216649700		Caster Pack,4 Casters ,wrench ,16 Screws		Appelez-nous	-
NI	216734501		Nameplate		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
