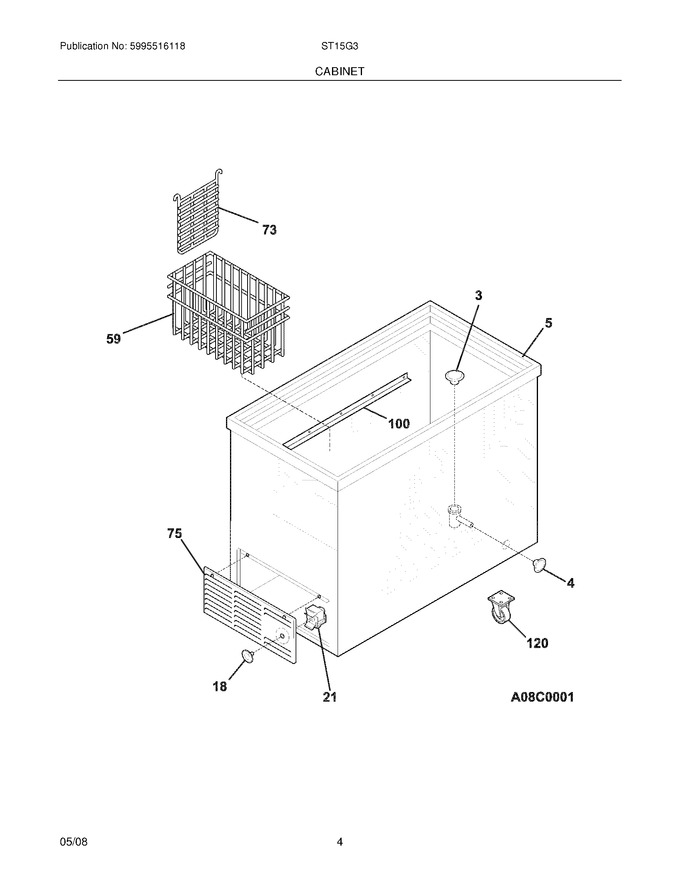

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216502600 | Plug-drain,interior |
|
Immediately | $ 17.35 | ||||
| 4 | 297013600 | Plug-drain,exterior |
|
$ 9.98 | |||||
| 5 | 216620505 | Frame,outer |
|
- | |||||
| 18 | 216707200 | Knob,temp Control |
|
$ 44.10 | |||||
| 59 | 297117900 | Basket,chest Freezer |
|
- | |||||
| 73 | 297118000 | Divider,basket |
|
- | |||||
| 75 | 216034301 | Panel-access, White |
|
$ 103.01 | |||||
| 100 | 216995208 | Track-basket |
|
$ 29.30 | |||||
| 120 | 216621000 | Caster |
|
- | |||||
| F21 | 216714601 | Control Temperature |
|
$ 143.87 | |||||
| NI | 216997400 | Support,track-basket |
|
$ 10.61 | |||||
| NI | 216360600 | Thermometer |
|
- | |||||
| NI | 216649700 | Caster Pack,4 Casters ,wrench ,16 Screws |
|
- | |||||
| NI | 216734501 | Nameplate |
|
- | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
