SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Cabinet/top

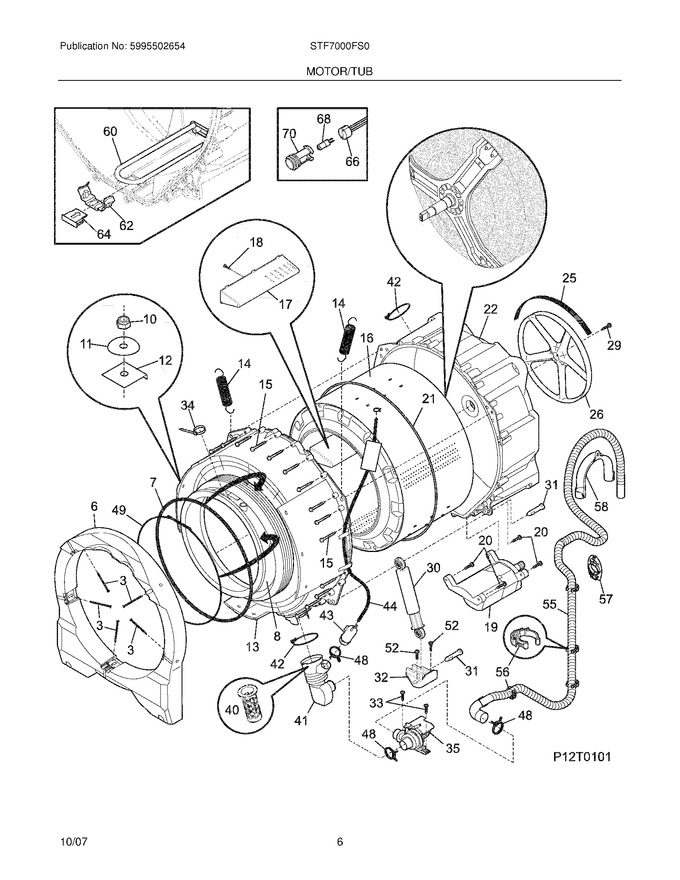

07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131793303		Bolt,carriage ,1/4-20 X 2.60				$ 13.74
6	134362200		Counterweight,front ,one Piece				$ 195.83
7	134365300		Spring,bellows Clamp ,retainer				$ 61.66
10	131304700		Nut,hex ,1/4-20 Unc-2b ,(2)				$ 8.14
11	131276900		Washer,bellville ,spring Steel				$ 21.69
12	134430600		Plate,counterweight				$ 10.40
13	134362000		Shell,tub ,front				$ 417.85
15	134408300		Screw,hex Head ,6.5 X 51 Mm		Appelez-nous	-
16	134360910		Drum Assy,spin Basket		Appelez-nous	-
17	134509600		Vane Kit,drum				$ 162.31
18	131302800		Screw,10-16ab X 0.375			Immediately	$ 26.58
20	131303500		Screw,12-14ab X 1.50 ,motor Mtg.				$ 12.05
21	5304520351		O-ring,tub   (Replaces: 134361900)				$ 98.32
22	134721310		Shell,tub ,rear ,w/bearing,seal				$ 368.59
29	134408400		Screw,10.9 Class ,m10 X 25 Mm				$ 17.72
30	5304485917		Shock Absorber,dual Stage   (Replaces: 134560400)			Immediately	$ 45.44
31	131268300		Pin,shock Mtg.			Immediately	$ 12.76
32	134363200		Bracket,shock Mtg.				$ 19.13
33	134160900		Screw,washer Hd ,10-16ab X 0.75				$ 12.05
34	5304464772		Cable Tie,5.60 Inch   (Replaces: 5303321209)				$ 10.63
40	134885800		Filter,pump				$ 7.25
41	134455900		Hose,coin Trap ,tub-to-pump			Immediately	$ 70.85
42	134737300		Clamp,hose				$ 20.13
43	137089000		Chamber,air   (Replaces: 134369000)				$ 129.00
44	137089000		Hose,air Pressure   (Replaces: 134369900)				$ 129.00
48	5304536802		Clamp,hose ,wire   (Replaces: 131306234)			Immediately	$ 4.01
49	134527100		Clamp,bellows ,spring Held			Immediately	$ 44.55
52	131202300		Screw,10-16ab X 0.625			Immediately	$ 13.46
56	134994200		Fastener,hose Clip ,(3)		Appelez-nous	-
57	134641100		Bracket,drain Hose Mtg ,rear				$ 19.85
58	134440700		Hanger,drain Hose				$ 13.55
62	134558000		Bracket,heating Element				$ 59.90
64	134558100		Stop,detente ,heating Element				$ 10.24
68	134554600		Lamp,g4 Light Bulb ,5 W ,12 V				$ 47.83
70	134551600		Diffuser,lamp ,door Light		Appelez-nous	-
F14	134362800		Spring Assy,suspension				$ 111.25
F19	137043000		Motor,120 V   (Replaces: 134362500)			Immediately	$ 430.65
F25	134051003		Belt,drive ,6-rib				$ 52.61
F26	134362600		Pulley,drum Drive ,large ,rear		Appelez-nous	-
F35	137221600		Pump,drain   (Replaces: 134051200)			Immediately	$ 189.21
F55	134889600		Hose,drain-one Piece				$ 72.66
F60	5304534256		Element,heating ,1000 W   (Replaces: 134552300)				$ 90.70
F66	134602000		Receptacle,lamp ,door Light		Appelez-nous	-
F8	134728400		Bellows Kit,boot ,w/light Hole   (Replaces: 134739800)			Immediately	$ 289.94
NI	134261300		Clip,drain Hose ,push-mount				$ 12.05

    View Diagram in Separate Window       Print Part List
