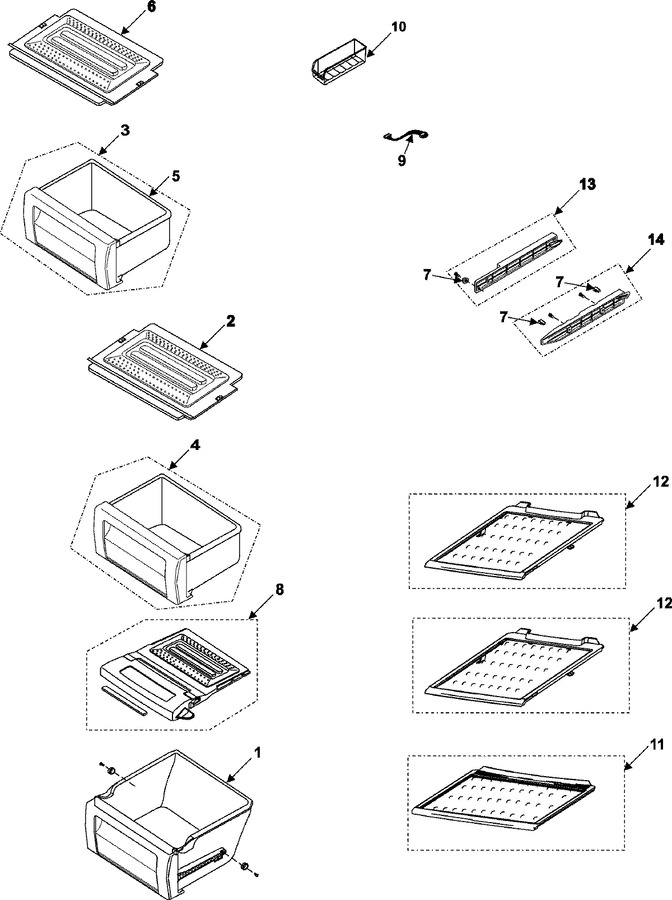

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555555		Assy Case-veg,low(750);a-top,e   (Replaces: DA97-00148N)				$ 151.94
2	DA63-00810C		Cover-veg Up(750);a-top,hips,c		Appelez-nous	-
3	DA97-00174K		Assy Tray-chilled(750);a-top,e		Appelez-nous	-
4	555555		Assy Case-veg,up(750);a-top,ex   (Replaces: DA97-00144N)				$ 151.94
5	DA63-00818D		Tray-chilled Room(750);a-top,a		Appelez-nous	-
6	DA63-00808A		Cover-tray Chill,a		Appelez-nous	-
7	DA63-02079A		Grommet-rail(a,b-type);a-top,n		Appelez-nous	-
8	DA63-00811C		Cover-veg Low(750);a-top,hips,				$ 64.66
9	555555		Sensor Assy   (Replaces: DA32-00006B)				$ 151.94
10	DA63-02492A		Tray Egg;epel,gpps,t2.5,w324.5				$ 54.87
11	DA67-00517G		Shelf Ref-low(750);best-buy,pp		Appelez-nous	-
12	DA67-01310B		Shelf Glass-ref Up;a-top,pp+gl		Appelez-nous	-
13	DA97-00730F		Assy Rail-basket R(b-type);a-t				$ 8.60
14	DA97-00731F		Assy Rail-basket L(b-type);a-t		Appelez-nous	-
