Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5300809703 Door Spring - Includes 4 (2) Special Order $ 39.04

2 5300809978 Screw-10-24 X 5/8`` Appelez-nous -
3 5303270031 Arm Assembly (2) Special Order $ 79.75

4 5300805884 Spring Pad (2) Appelez-nous -
5 5300809979 Nut Appelez-nous -
6 5300809055 Screw-8 X 7/16`` (4) Special Order $ 1.21

7 5300809288 Door Assy Appelez-nous -
8 5300808749 Screw-8 X 5/8``(6) Appelez-nous -
9 5300809075 Wire Tie Appelez-nous -
10 5300809695 Speed Nut Appelez-nous -
11 5300809773 Baffle Seal Appelez-nous -
12 5303271018 Latch Assy Appelez-nous -
13 5300809933 Switch Cover Appelez-nous -
14 5300809934 Switch Special Order $ 129.57

15 5300809981 Screw-8a X 5/8`` (2) Appelez-nous -
16 5300808618 Screw-6-32 X 1`` (2) Appelez-nous -
17 5300808712 Latch Knob Special Order $ 31.71

18 5300808715 Screw, 8, 32 X 5/16`` Appelez-nous -
19 5300809696 Screw-8 X 3/8`` Appelez-nous -
20 5300808949 Door Panel-white Appelez-nous -
21 5300809117 Access Panel-white Special Order $ 23.89


    View Diagram in Separate Window     Print Icon   Print Part List

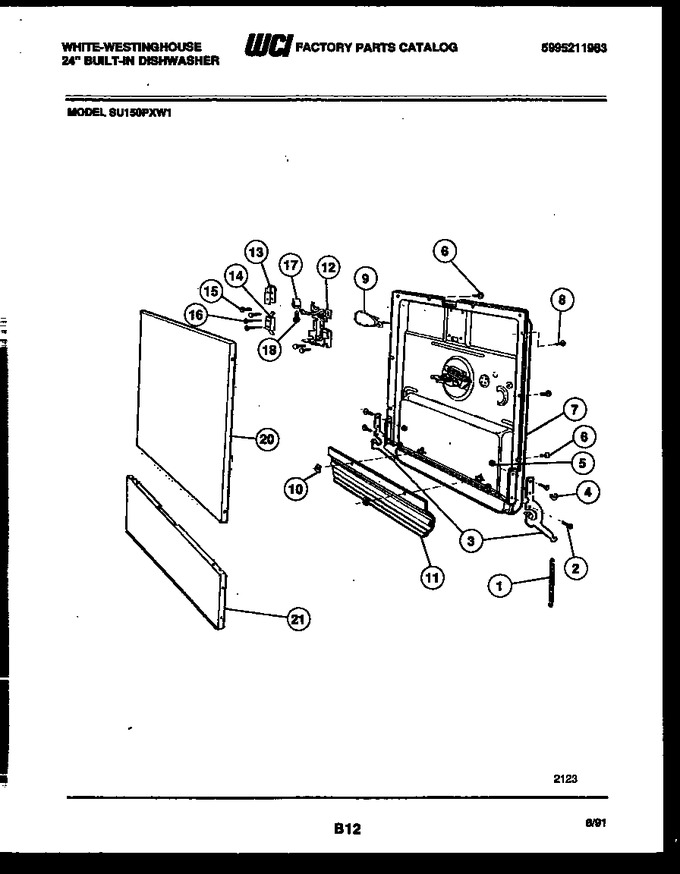

Diagram for SU150PXW1
