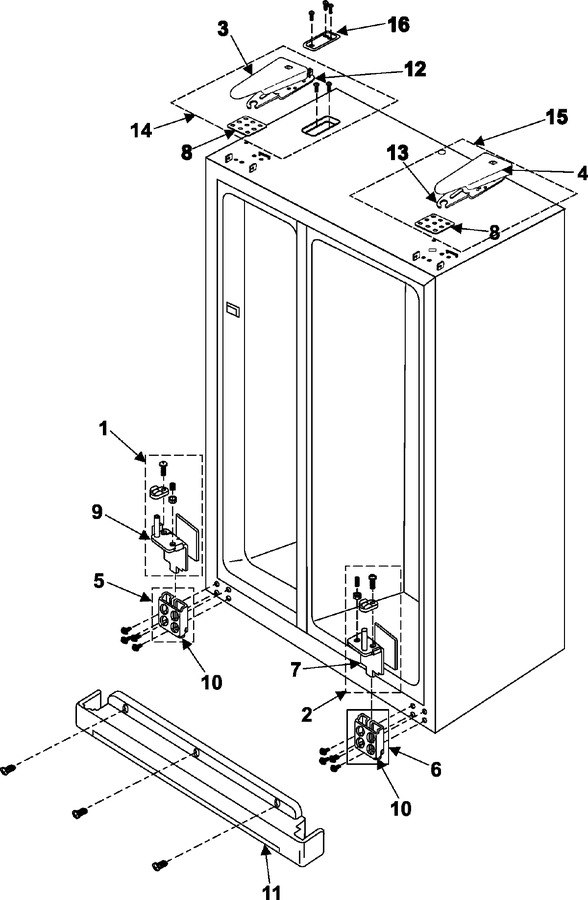

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-01760G		Assy Hinge Low-l				$ 54.87
2	DA97-01763D		Assy Hinge Low-r		Appelez-nous	-
3	DA63-02086C		Cover Hinge-upp;a-top,n-abs,2.		Appelez-nous	-
4	DA63-01275A		Cover-tube Water		Appelez-nous	-
5	DA97-02241B		Assy Bracket-hinge Low L 50;us		Appelez-nous	-
6	DA97-02242B		Assy Bracket-hinge Low R 50;us		Appelez-nous	-
7	DA61-01608B		Hinge-low R				$ 47.05
8	DA63-50192A		Shim-hinge Upp;abs,left				$ 2.39
9	DA61-01607C		Hinge-low L		Appelez-nous	-
10	DA61-00459D		Bracket Hinge-low;50mm,a-top,s		Appelez-nous	-
11	DA63-01968G		Cover-leg Front;a-top(04),pp,i				$ 47.68
12	DA61-01709A		Hinge-up;ad,shp1,t3,-,-,-,-,50		Appelez-nous	-
13	DA61-01912D		Hinge-upp R		Appelez-nous	-
14	Y00000000		See Note Assy Hinge Upp-l Currently Unavailble		Appelez-nous	-
15	Y00000000		See Note Assy Hinge Upp-r Currently Unavailable		Appelez-nous	-
