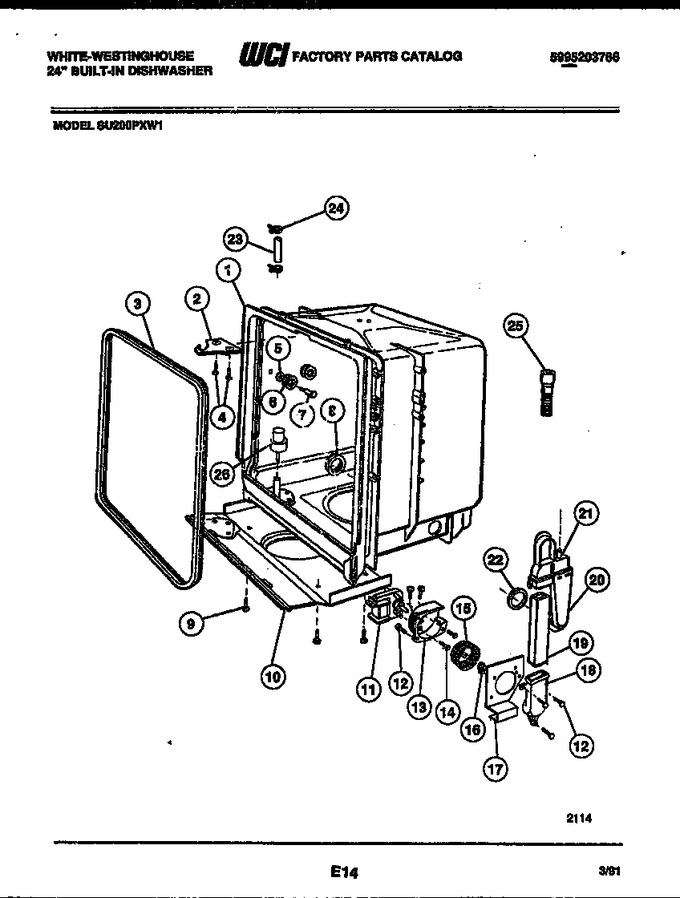

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809967		Tub Assy		Appelez-nous	-
2	5300809610		Door Strike		Appelez-nous	-
3	5300809611		Tub Gasket				$ 41.15
4	5300809612		Screw-10 X 1/2``		Appelez-nous	-
5	5300809968		Washer (8)				$ 43.38
6	5304507405		Tub Roller (8)   (Replaces: 5300809917)			Immediately	$ 25.79
7	5300809969		Shoulder Screw (8)		Appelez-nous	-
8	5300809724		Plastic Nut-blower		Appelez-nous	-
9	5300809605		Screw-10 X 5/8``		Appelez-nous	-
10	5300809614		Bottom Pan		Appelez-nous	-
11	5300809725		Blower Motor		Appelez-nous	-
12	5308000039		Screw		Appelez-nous	-
13	5300809726		Housing		Appelez-nous	-
14	5300809731		Screw-8-32 X 3/8``(2)		Appelez-nous	-
15	08016015		Blower Blade				$ 13.05
16	5300809728		Clamp		Appelez-nous	-
17	5300809615		Blower Mounting Plate		Appelez-nous	-
18	5300809729		Power Dry Vent		Appelez-nous	-
19	5300809617		Blower Duct		Appelez-nous	-
20	5300809616		Blower Inlet		Appelez-nous	-
21	5300809730		Water Inlet Cap		Appelez-nous	-
22	5300809618		Blower Gasket		Appelez-nous	-
23	5300809619		Water Inlet Tubing		Appelez-nous	-
24	5300807813		Clamp (2)		Appelez-nous	-
25	3100021801		Drain Hose				$ 73.00
26	5300809861		Float		Appelez-nous	-
*42173	5300809781		Tub Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
