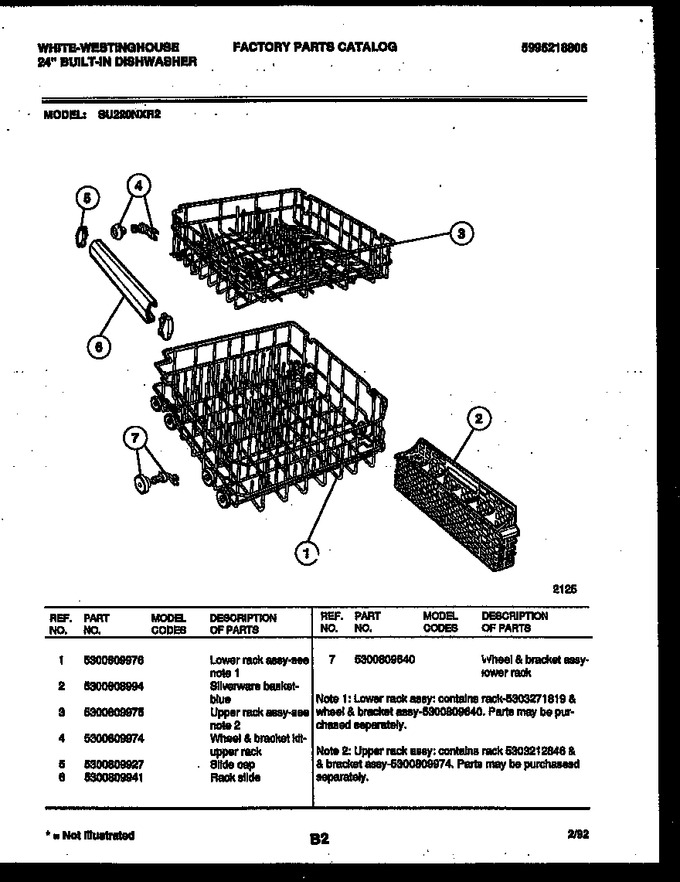

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809976 | Lower Rack Assy- (lower Rack Assy: Contains Rack-5303271 |
|
- | |||||
| 2 | 5304509753 | Silverware Basket-blue (Replaces: 5300808994) |
|
Immediately | $ 36.87 | ||||
| 3 | 5300809975 | Upper Rack Assy- (upper Rack Assy: Contains Rack 5303212 |
|
- | |||||
| 4 | 5304535381 | Wheel & Bracket Kit-upper Rack (Replaces: 5300809974) |
|
Immediately | $ 10.05 | ||||
| 5 | 5300809927 | Slide Cap |
|
Immediately | $ 3.69 | ||||
| 6 | 5300809941 | Rack Slide |
|
- | |||||
| 7 | 5304532229 | Wheel & Bracket Assy, Lower Rack (Replaces: 5300809640) |
|
Immediately | $ 12.75 |
