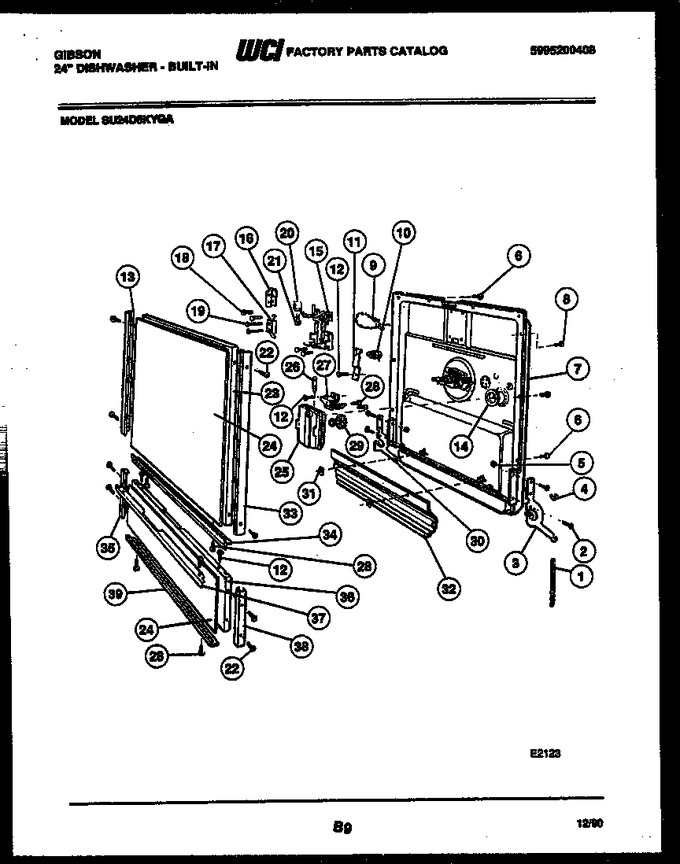

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809703 | Door Spring - Includes 4 |
|
$ 39.04 | |||||
| 2 | 5300803311 | Screw-10-24 X 5/8`` |
|
- | |||||
| 3 | 5300809704 | Arm Assy Rh |
|
$ 69.14 | |||||
| 4 | 5300805884 | Spring Pad |
|
- | |||||
| 5 | 5300808470 | Nut |
|
- | |||||
| 6 | 5300809055 | Screw-8 X 7/16`` |
|
$ 1.21 | |||||
| 7 | 5303270034 | Door Assy |
|
- | |||||
| 8 | 5300808749 | Screw-8 X 5/8`` |
|
- | |||||
| 9 | 5300809075 | Wire Tie |
|
- | |||||
| 10 | 5300808956 | Thermostat |
|
$ 3.78 | |||||
| 11 | 5300809097 | Thermostat Retainer |
|
- | |||||
| 12 | 154419403 | Screw 8 X 3/8`` (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 13 | 5300809912 | Door Panel Trim-lh |
|
- | |||||
| 14 | 5300805631 | Dispenser Grommet |
|
$ 6.29 | |||||
| 15 | 5303270032 | Latch Assy |
|
- | |||||
| 16 | 5300809933 | Switch Cover |
|
- | |||||
| 17 | 5300809934 | Switch |
|
$ 129.57 | |||||
| 18 | 5300809029 | Screw-8 A X 5/8`` |
|
- | |||||
| 19 | 5300808618 | Screw-6-32 X 1`` |
|
- | |||||
| 20 | 5300808712 | Latch Knob |
|
$ 31.71 | |||||
| 21 | 5300808715 | Screw, 8, 32 X 5/16`` |
|
- | |||||
| 22 | 5300809696 | Screw-8 X 3/8`` |
|
- | |||||
| 23 | 5300807262 | Door Panel-white |
|
- | |||||
| 24 | 5300808908 | Door & Access Panel Insert |
|
- | |||||
| 25 | 5300806753 | Body Assy. |
|
$ 69.93 | |||||
| 26 | 5300809898 | Plunger |
|
$ 36.49 | |||||
| 27 | 5300809782 | Bi-metal Assy |
|
$ 47.51 | |||||
| 28 | 5300809696 | Screw-8 X 1/2`` |
|
- | |||||
| 29 | 5300809916 | Fill Plug |
|
- | |||||
| 30 | 5300809705 | Arm Assy-lh |
|
$ 62.11 | |||||
| 31 | 83212-5 | Speednut |
|
- | |||||
| 32 | 5300809773 | Baffle Seal |
|
- | |||||
| 33 | 5300809911 | Door Panel Trim-rh |
|
- | |||||
| 34 | 5300807347 | Door Panel Trim-bottom |
|
- | |||||
| 35 | 5300809915 | Access Panel Trim-lh |
|
- | |||||
| 36 | 5300809108 | Access Panel-white |
|
- | |||||
| 37 | 5300808346 | Access Panel Trim-top |
|
- | |||||
| 38 | 5300809914 | Access Panel Trim-rh |
|
- | |||||
| 39 | 5300809994 | Access Panel Trim-bottom |
|
- |
