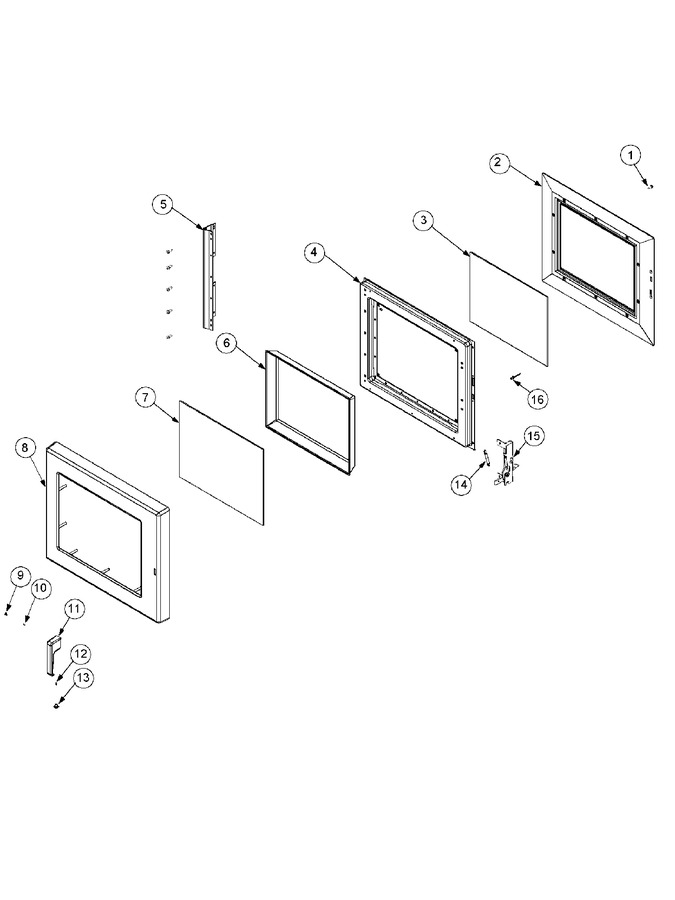

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	M0232218		Screw,hi/lo Y Drive		Appelez-nous	-
001	NLA		Magnetic Y-drive Bit		Appelez-nous	-
002	D7683508		Door, Inner		Appelez-nous	-
003	B8371202		Window, Inner		Appelez-nous	-
004	D7683729		Weldment-inner Door (blk)		Appelez-nous	-
005	C8961811		Hinge-door		Appelez-nous	-
005	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
006	NLA		Box,shadow		Appelez-nous	-
007	C8960402		Window,outer		Appelez-nous	-
008	12667101		Door,outer		Appelez-nous	-
009	59001007		Hole, Plug		Appelez-nous	-
010	5051032202		Set Screw No.10 X .25		Appelez-nous	-
011	12490901		Handle, Door		Appelez-nous	-
012	M0208342		Screw, Set		Appelez-nous	-
013	M0310305		Plug, Button (wht)		Appelez-nous	-
014	C8893502		Spring, Door Latch		Appelez-nous	-
015	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
015	12002757		Latch Kit   (Replaces: R0000282)				$ 116.60
016	A4539601		Pop Rivet		Appelez-nous	-
