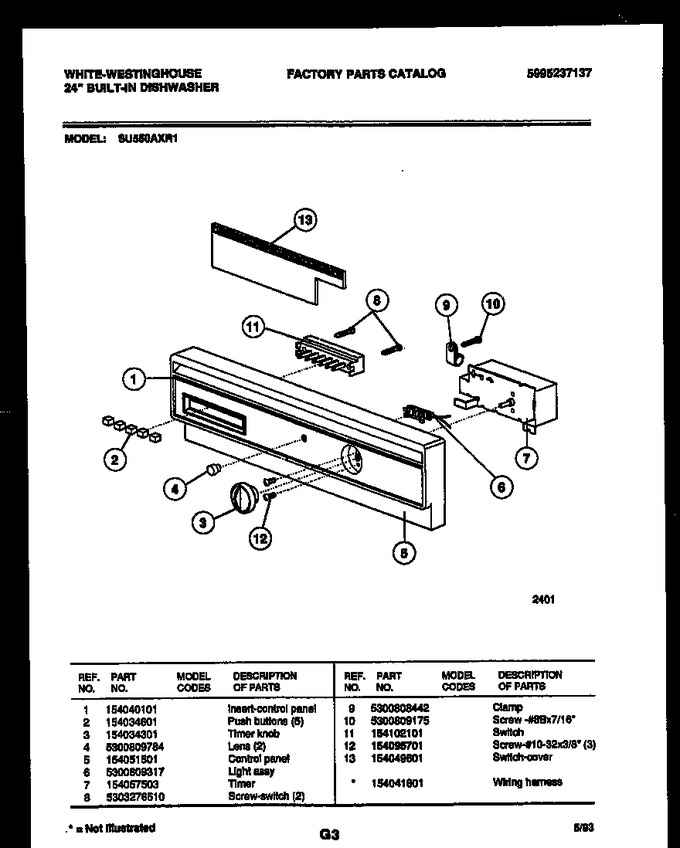

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154040101 | Insert-control Panel |
|
- | |||||
| 2 | 154034601 | Push Buttons (5) |
|
- | |||||
| 3 | 154034301 | Timer Knob |
|
- | |||||
| 4 | 5300809784 | Lens (2) |
|
- | |||||
| 5 | 154051501 | Control Panel |
|
- | |||||
| 6 | 5300809317 | Light Assy |
|
- | |||||
| 7 | 154057503 | Timer |
|
$ 438.22 | |||||
| 8 | 5303276510 | Screw-switch (2) |
|
- | |||||
| 9 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 10 | 5300809175 | Screw 8b X 7/16`` |
|
- | |||||
| 11 | 154102101 | Switch |
|
- | |||||
| 12 | 154095701 | Screw-10-32 X 3/8`` (3) |
|
$ 10.34 | |||||
| 13 | 154049601 | Switch-cover |
|
- | |||||
| *74379 | 154041801 | Wiring Harness |
|
- |
