SELECT A DIAGRAM

01 - Chassis Assy


02 - Control Panel

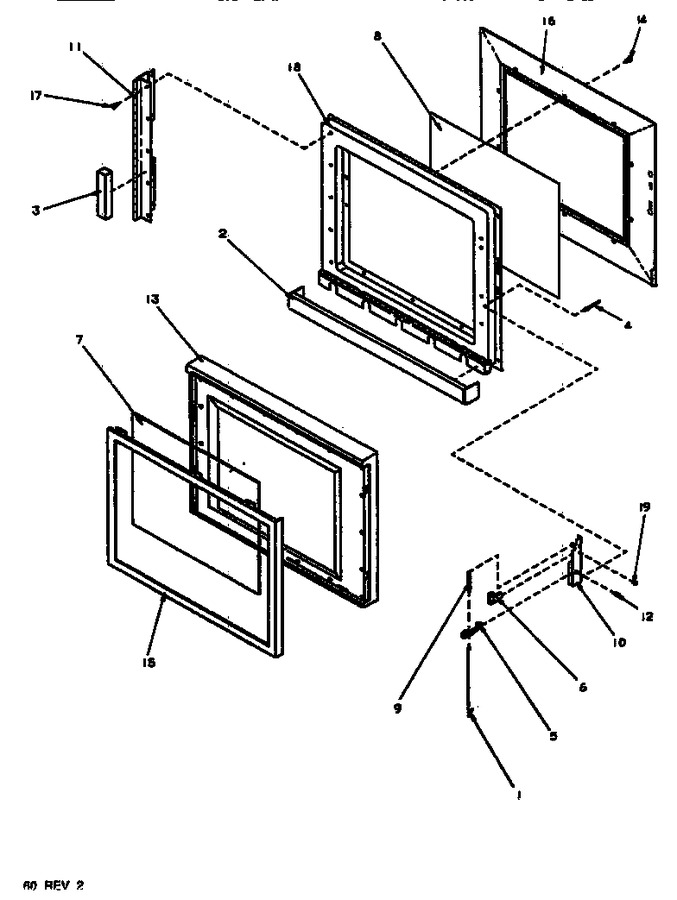

03 - Door Assy


04 - Electrical


05 - Electrical (cont.)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A1050103		Connecting Rod A		Appelez-nous	-
2	D7683601		Cover Handle Brown K		Appelez-nous	-
2	D7683610		Cover, Handle (white)		Appelez-nous	-
2	D7683606		Handle, Cover		Appelez-nous	-
3	A3263904		Gasket		Appelez-nous	-
4	A4539601		Pop Rivet		Appelez-nous	-
5	B8370301		Latch Dr K		Appelez-nous	-
6	B8370401		Guide, Door K		Appelez-nous	-
7	D7534008		Window Outer		Appelez-nous	-
7	D7534003		Outer Window		Appelez-nous	-
8	B8371201		Window, Inner		Appelez-nous	-
9	C8893502		Spring, Door Latch		Appelez-nous	-
10	C8936101		Bracket Dr Latch K		Appelez-nous	-
11	C8936213		Hinge, Door (black)		Appelez-nous	-
11	C8936205		Hinge, Door (black)		Appelez-nous	-
11	C8936210		Door Hinge Pnt		Appelez-nous	-
11	10809402		Door Hinge (white)		Appelez-nous	-
11	10809404		Door Hinge (black)		Appelez-nous	-
12	M1200107		Pin Roll K		Appelez-nous	-
13	D7683212		Door Outer		Appelez-nous	-
13	Y10810102		Door Outer		Appelez-nous	-
13	10810101		Door, Outer (white)		Appelez-nous	-
13	D7683211		Door Outer		Appelez-nous	-
13	D7683204		Door, Outer		Appelez-nous	-
14	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.02
15	D7683404		Retainer, Lens		Appelez-nous	-
15	D7683405		Retainer, Lens		Appelez-nous	-
15	D7683402		Retainer, Lens		Appelez-nous	-
16	D7683505		Door, Inner V		Appelez-nous	-
17	M0234016		Screw		Appelez-nous	-
18	R0156817		Door Ring Assy		Appelez-nous	-
18	R0156892		Door Ring Assy		Appelez-nous	-
18	R0156804		Door Ring Assy		Appelez-nous	-
19	M0010214		Rivet A K		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
