Diagram for 02 - Console And Control Parts
02 - Console And Control Parts

Diagram for 03 - Cam
03 - Cam

Diagram for 04 - Door Parts
04 - Door Parts

Diagram for 05 - Tub And Frame Parts
05 - Tub And Frame Parts

Diagram for 06 - Motor Pump Parts
06 - Motor Pump Parts

Diagram for 07 - Power Dry And Motor Parts
07 - Power Dry And Motor Parts

Diagram for 08 - Racks And Trays
08 - Racks And Trays


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 154122201 Insert-control Panel Appelez-nous -
2 154034601 Push Buttons (8) Appelez-nous -
3 154034301 Timer Knob Appelez-nous -
4 5300809784 Lens (2) Appelez-nous -
5 154051501 Control Panel Appelez-nous -
6 5300809317 Light Assy Appelez-nous -
7 154057703 Timer Special Order $ 319.62

8 5303276510 Screw-switch (2) Appelez-nous -
9 240396801 Clamp   (Replaces: 5300808442) Special Order $ 19.13

10 154419403 Screw (4)   (Replaces: 5300808658) Special Order $ 13.10

11 154102501 Switch Appelez-nous -
12 154095701 Screw-timer-mtg/grounding (3) Special Order $ 10.34

13 154049601 Switch-cover Appelez-nous -
14 240396801 Clamp   (Replaces: 5300808442) Special Order $ 19.13

*68376 154042001 Wiring Harness Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

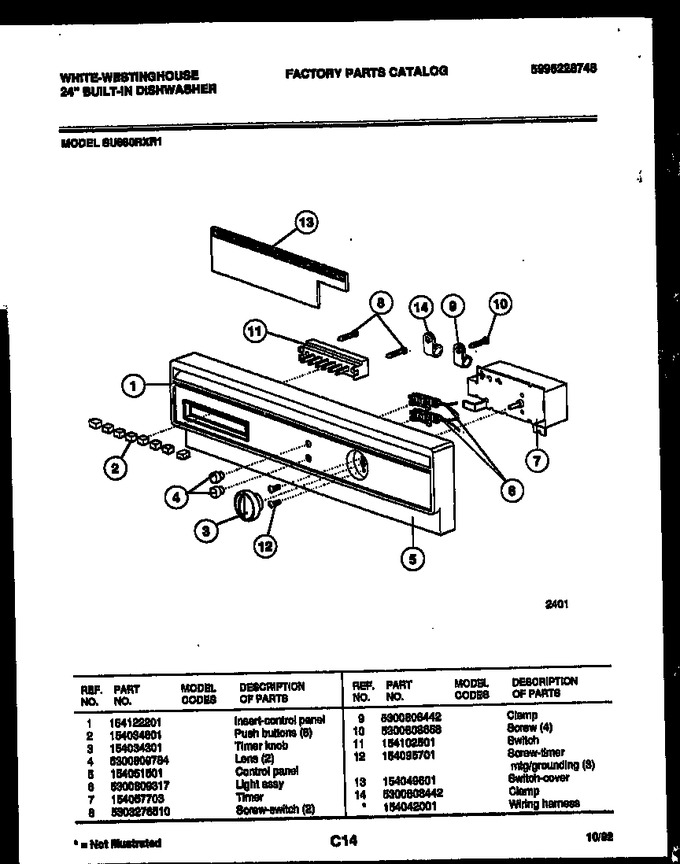

Diagram for SU880RXR1
