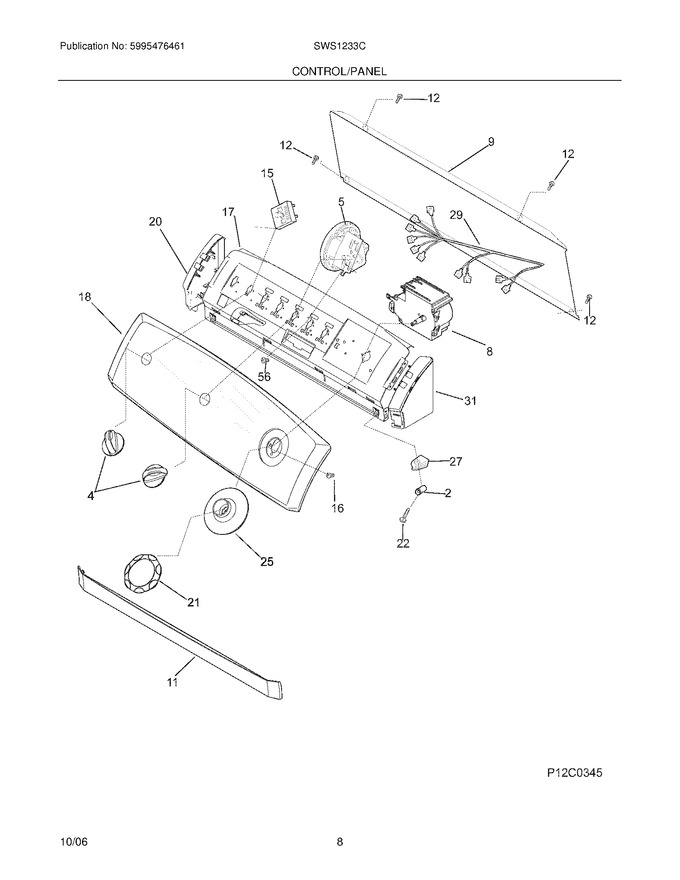

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer,console Mtg				$ 13.55
4	134034911		Knob,rotary ,bisque		Appelez-nous	-
9	131992910		Panel,backsheet ,console				$ 64.73
11	134019910		Closure,console Trim ,bisque ,front		Appelez-nous	-
12	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
16	131168200		Screw,pan Head ,10.16ab X 0.375   (Replaces: 131477001)			Immediately	$ 14.18
17	131993040		Bracket,control Mtg.				$ 46.83
18	134324300		Panel,trimplate ,console Front		Appelez-nous	-
20	134019611		End Cap,bisque ,lh		Appelez-nous	-
21	134035201		Knob,timer ,bisque ,assy		Appelez-nous	-
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	134035101		Pointer,timer Knob ,bisque ,dark Brown Ind		Appelez-nous	-
27	131197000		Clip-console Mtg				$ 13.62
29	134544700		Wiring Harness		Appelez-nous	-
31	134019601		End Cap,bisque ,rh		Appelez-nous	-
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F15	134407700		Switch,temp Selector ,3 Posn Rotary				$ 44.84
F5	134497500		Switch,pressure ,3 Posn Rotary				$ 86.21
F8	134049600		Timer,washer				$ 360.19

    View Diagram in Separate Window       Print Part List
