Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3131583 Back A/u Mid Wall Appelez-nous -
2 3131586 Reflectr Wrk Lamp Appelez-nous -
3 3131275 Bulb-fluor Special Order $ 49.40

4 3051732 Insul Fluor Lite Recept (2) Appelez-nous -
5 597T047P01 Recept Fluor Lite (2) Appelez-nous -
6 3051465 Trim Vent Appelez-nous -
7 046T003P03 Blower Motor Assembly Appelez-nous -
8 3131653 Gusset Mwv Supt Lh Appelez-nous -
9 277T164P25 Glass Splasher O/u Appelez-nous -
10 513T073F21 Panel-splasher Upr. Appelez-nous -
11 3051115 Ballast Appelez-nous -
12 241T003P01 Fastnr Cble Clamp Appelez-nous -
13 3051727 Bezel-sw. Appelez-nous -
14 3131588 Harness-o/u Lite Sw Appelez-nous -
15 740T309F01 Trim O/u Spl Side Lh Appelez-nous -
16 3051340 Trim O/u Spl Gl Filler Appelez-nous -
17 789T053P44 Washer, Spring (2) Appelez-nous -
18 3051324 Thermostat-s/c Appelez-nous -
19 3051348 Angle Supt S/c Thermo Appelez-nous -
15A 740T309F02 Trim O/u Spl Side Rh Appelez-nous -
8A 3131654 Gusset Mwv Supt Rh Appelez-nous -

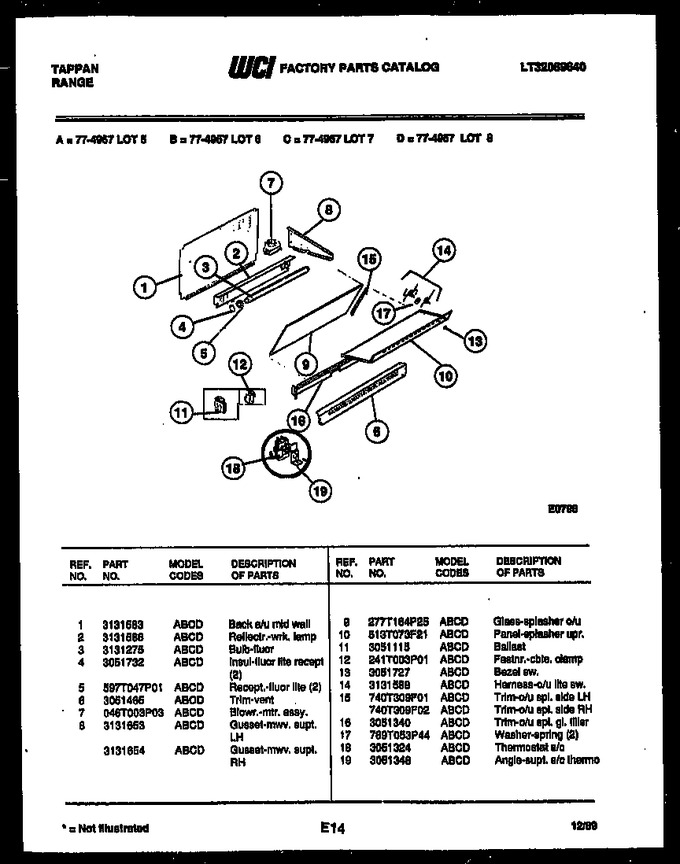

    View Diagram in Separate Window     Print Icon   Print Part List
