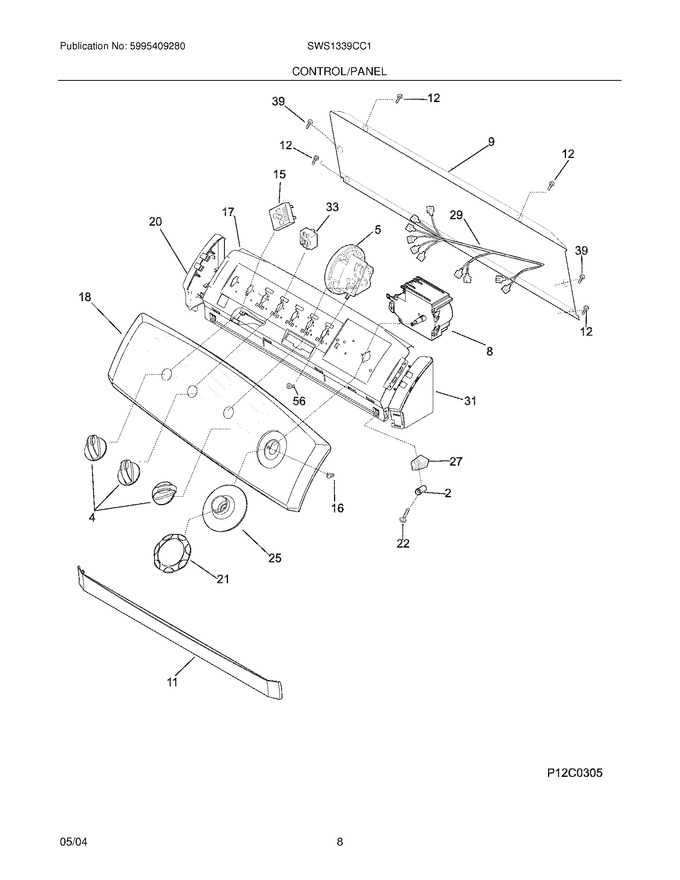

09 - Control/panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer,console Mtg				$ 13.55
4	134034902		Knob,rotary ,graphite/silver		Appelez-nous	-
8	134049500		Timer,5-off				$ 275.71
9	131992910		Panel,backsheet ,console				$ 64.73
11	134019920		Closure,console Trim ,silver ,front				$ 58.38
16	131168200		Screw,pan Head ,10.16ab X 0.375   (Replaces: 131477001)			Immediately	$ 14.18
17	131993000		Bracket,control Mtg.		Appelez-nous	-
18	134325200		Panel,trimplate ,console Front		Appelez-nous	-
20	134019621		End Cap,silver ,lh		Appelez-nous	-
21	134035202		Knob,timer ,graphite ,assy				$ 54.34
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	134035102		Pointer,timer Knob ,graphite ,silver Ind.				$ 58.91
27	131197000		Clip-console Mtg				$ 13.62
31	134019620		End Cap,silver ,rh		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F15	131047000		Switch,temp Selector ,3 Position		Appelez-nous	-
F29	134316300		Wiring Harness		Appelez-nous	-
F33	131243200		Switch,2 Position		Appelez-nous	-
F5	134680100		Switch,pressure ,infinite   (Replaces: 131396200)				$ 113.51
