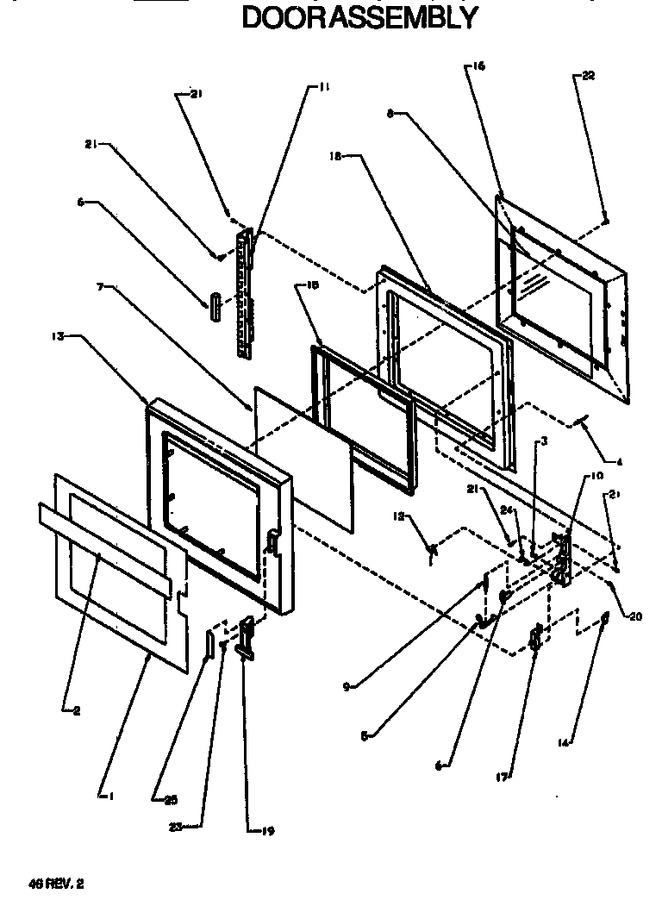

01 - Chassis Assy


02 - Door Assy


03 - Electrical


04 - Electrical (cont.)


05 - Miscellaeous Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7738601		Insert Dr		Appelez-nous	-
2	C8962435		Thinplate-door		Appelez-nous	-
3	B8379201		Pin, Latch		Appelez-nous	-
4	A4539601		Pop Rivet		Appelez-nous	-
5	C8959901		Latch, Door		Appelez-nous	-
6	B8370401		Guide, Door K		Appelez-nous	-
7	C8960401		Window, Outer		Appelez-nous	-
8	C8960501		Window, Inner		Appelez-nous	-
9	C8893502		Spring, Door Latch		Appelez-nous	-
10	C8960102		Latch Assy		Appelez-nous	-
11	C8961801		Hinge-door		Appelez-nous	-
12	B8379601		Spring, Handle		Appelez-nous	-
13	D7730001		Door,outer		Appelez-nous	-
14	C8991301		Pad-latch Assy		Appelez-nous	-
15	D7731102		Retainer-lens		Appelez-nous	-
16	D7731202		Inner Door		Appelez-nous	-
17	D7741701		Latch Assy		Appelez-nous	-
18	D7683704		Kit, Weldment-inner Door		Appelez-nous	-
19	D7751101		Handle Front Tee		Appelez-nous	-
20	M0010214		Rivet A K		Appelez-nous	-
21	M0234016		Screw		Appelez-nous	-
22	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.02
23	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
24	YM1205111		Latch Assy		Appelez-nous	-
25	B8381101		Insert, Handle		Appelez-nous	-
