SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Ice & Water Dispenser


08 - Ice Bin


09 - Ice Maker


10 - Shelves & Accessories


11 - Unit Compartment & System


12 - Wiring Information

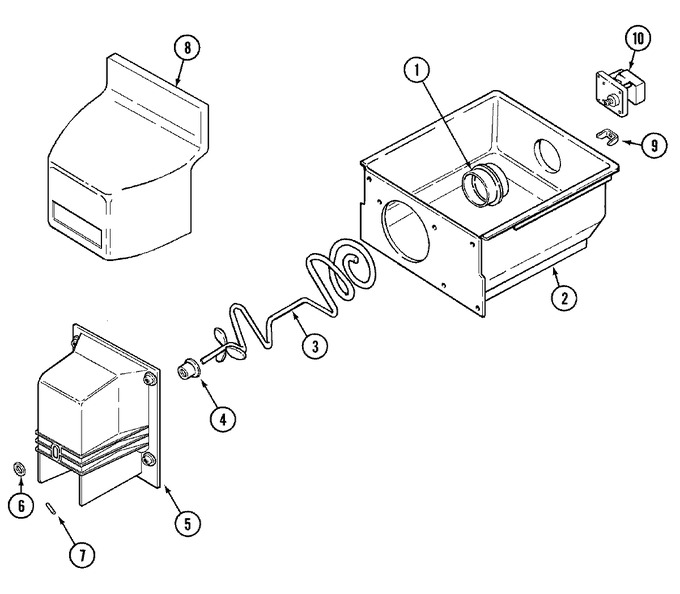

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	70027-2		Ring, Drive	10	Appelez-nous	-
2	67826-1		Bin	10	Appelez-nous	-
3	67833-1		Auger	10	Appelez-nous	-
4	67172-2		Bearing	10	Appelez-nous	-
5	67829-1		Ice Dam	10	Appelez-nous	-
6	67834-2		Washer, Thrust	10	Appelez-nous	-
7	492007-703		Pin, Cotter	10	Appelez-nous	-
8	489392		Screw   (Replaces: 415013-35)	10			$ 12.02
8	69875-11		Front Assy, Ice Disp	10	Appelez-nous	-
9	WP63052-2		Yoke, Ice Dispenser   (Replaces: 63052-2)	10		Immediately	$ 62.02
10	WP488234		Screw   (Replaces: 406026-103)	10			$ 6.07
10	69048-1		Wire Harness, Auger Motor	10	Appelez-nous	-
10	12001773		Motor, Auger   (Replaces: 65186-1)	10			$ 312.61

    View Diagram in Separate Window       Print Part List
