View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door/drawer (series 01)
03 - Gas Controls
04 - Oven/base
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:

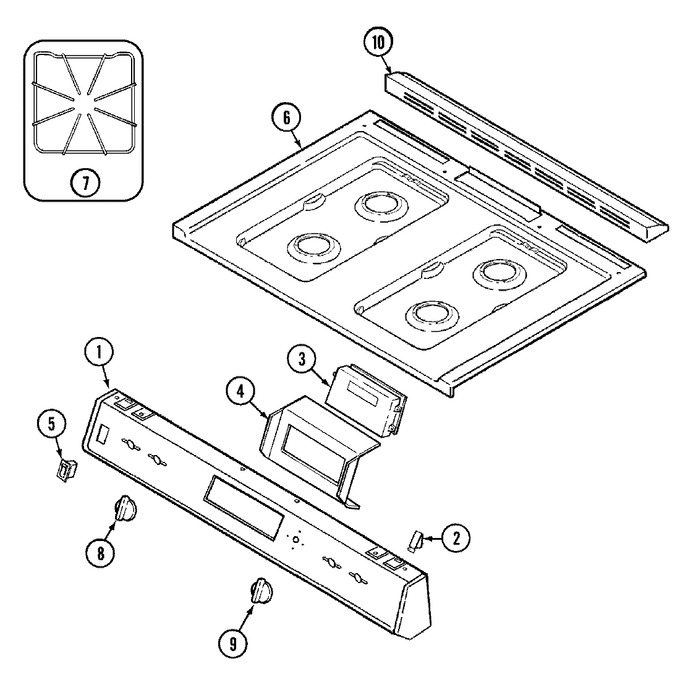

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7712P186-60 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 2 | 7112P102-60 | Clip, Speed | 01 |
|
- | ||||
| 3 | 7602P119-60 | Clock (blk) | 01 |
|
- | ||||
| 4 | 3801F332-45 | Bracket | 01 |
|
- | ||||
| 4 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 5 | 4005F415-51 | Cover, Mainfold (rear) | 01 |
|
- | ||||
| 5 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 6 | 7724P051-60 | Cover, Vent Trim | 01 |
|
- | ||||
| 6 | 2001F089-30 | Top, Main (stls) | 01 |
|
- | ||||
| 6 | 3601F221-45 | Baffle, Vent Cover | 01 |
|
$ 28.30 | ||||
| 6 | 7706P301-60 | Extrusion, Filler | 01 |
|
- | ||||
| 7 | 2003W027-00 | Grate (blk) | 01 |
|
- | ||||
| 8 | 7733P065-60 | Knob, Valve | 01 |
|
- | ||||
| 9 | 7731P071-60 | Knob, Thermostat (blk) | 01 |
|
$ 39.24 | ||||
| 9 | 3801F325-51 | Bracket, Main Top | 01 |
|
- | ||||
| 10 | 7724P051-60 | Cover, Vent Trim | 01 |
|
- | ||||
| 11 | 8112P106-60 | Manual, Use & Care-insert | 01 |
|
- | ||||
| 11 | 8113P012-60 | Manual, Use & Care | 01 |
|
- | ||||
| 12 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
