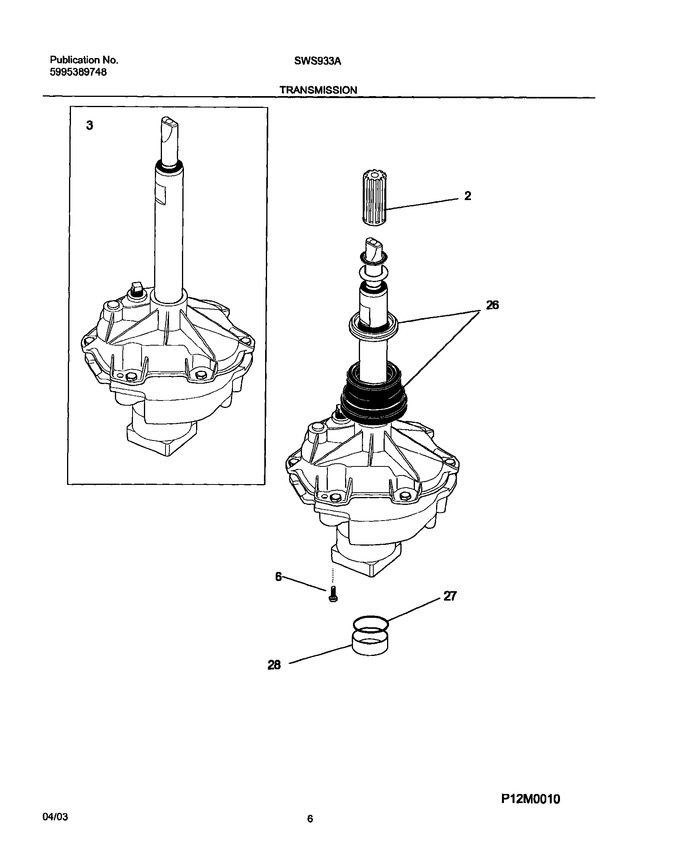

07 - Transmission
09 - Control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 131346600 | Screw,hex Washer Head ,1/4-20t X 0.450 |
|
- | |||||
| 27 | 131784300 | Washer,bearing Block ,transmission |
|
- | |||||
| 28 | 131784400 | Spacer,bearing Block ,transmission |
|
$ 48.58 | |||||
| F2 | 131475100 | Hub,drive ,agitator |
|
- | |||||
| F26 | 5303279394 | Seal Assy,tub ,transmission |
|
$ 85.72 | |||||
| F3 | 131878402 | Transmission Assy,h+helical Gear |
|
- |
