Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3051476 Main Top (lusterloy) Appelez-nous -
2 08067747 Brkt Hnge-rh Appelez-nous -
2 08067746 Brkt Hnge-lh Appelez-nous -
3 3013818 Top Supt Rod (2) Appelez-nous -
4 3051870 Panel, Manifold Appelez-nous -
5 3051355 Trim, Main Top (rh) Appelez-nous -
5 3051354 Trim, Main Top, Lh Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

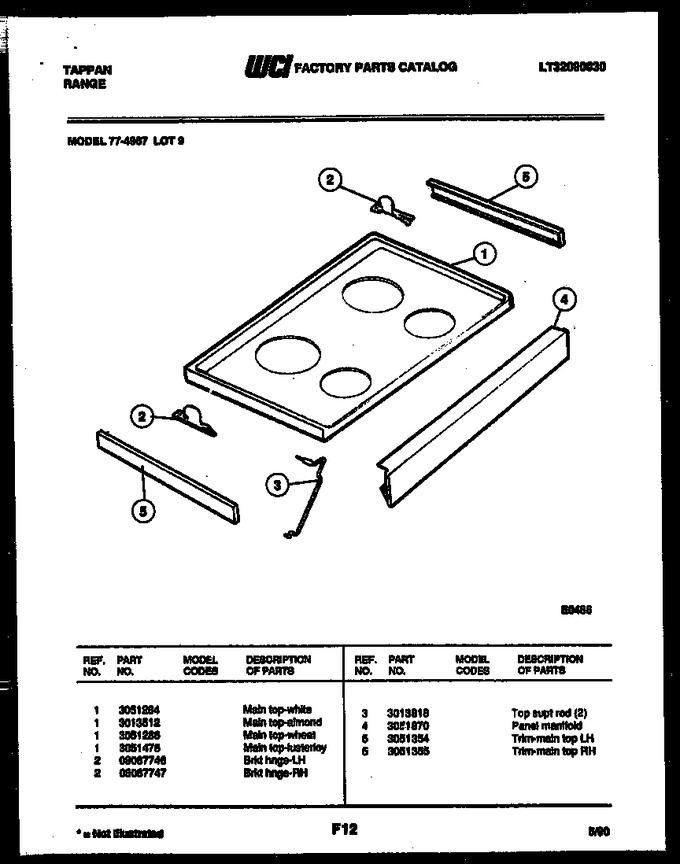

Diagram for 77-4957-32-09
