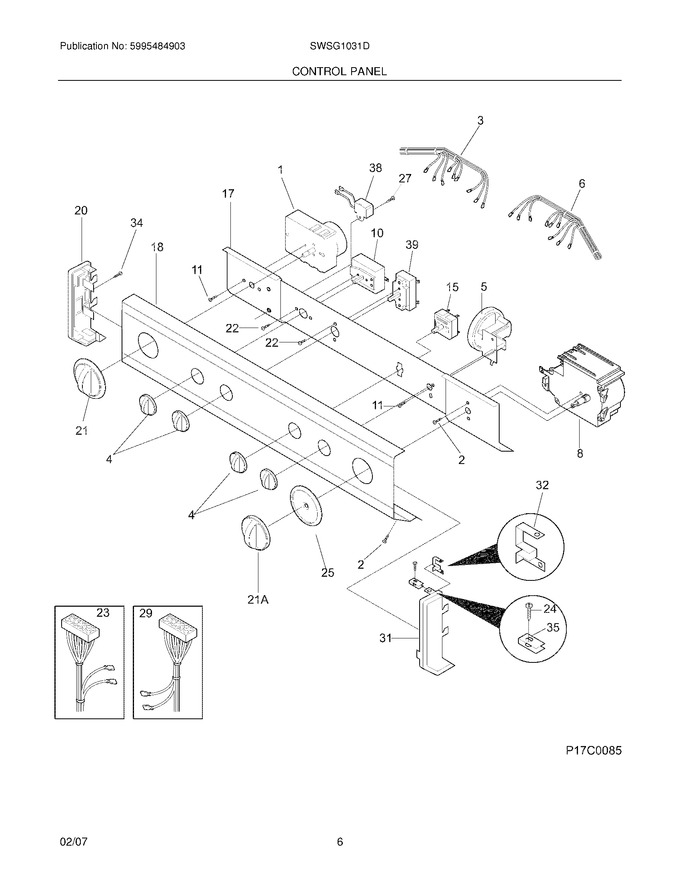

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	134034971		Knob,rotary ,bisque		Appelez-nous	-
5	134422700		Switch,pressure ,3 Position ,3/4 Hp			Immediately	$ 98.06
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	134263400		Bracket,control Mount		Appelez-nous	-
18	134417400		Panel,trimplate ,bisque ,console Front		Appelez-nous	-
20	131288104		End Cap,bisque ,lh		Appelez-nous	-
21	134043001		Knob,dryer Timer ,bisque		Appelez-nous	-
22	3161259		Screw,switch Mtg ,6-32 X 0 .19 ,(2) ,sems				$ 6.83
24	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
25	131976805		Indicator,timer Pointer ,bisque/dk Brown,washer		Appelez-nous	-
27	131892100		Screw,6-20b X 0.230		Appelez-nous	-
31	131288214		End Cap,bisque ,rh ,without Cut Out		Appelez-nous	-
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	5308014350		Clip,end Cap Mtg ,u-type		Appelez-nous	-
21A	134043201		Knob,washer Timer ,bisque		Appelez-nous	-
F1	131583801		Timer,dryer ,3-off				$ 336.65
F10	134399700		Switch,start ,lcd			Immediately	$ 83.77
F15	134410100		Switch,temperature ,3 Position				$ 45.68
F23	134605800		Wiring Harness,main		Appelez-nous	-
F29	134689400		Wiring Harness,washer ,2spd				$ 343.77
F3	131703600		Wiring Harness,dryer Control		Appelez-nous	-
F38	5303286537		Buzzer				$ 93.61
F39	134399800		Switch,dryer Temp ,rotary 4 Pos				$ 70.78
F6	134542500		Wiring Harness,washer Control ,w/temp Switch				$ 238.77
F8	134049600		Timer,washer				$ 360.19
NI	131209800		Clamp,hose ,pressure Switch				$ 65.92
NI	134101400		Terminal Block,main			Immediately	$ 55.99
NI	5304426200		Screw,terminal Block		Appelez-nous	-
