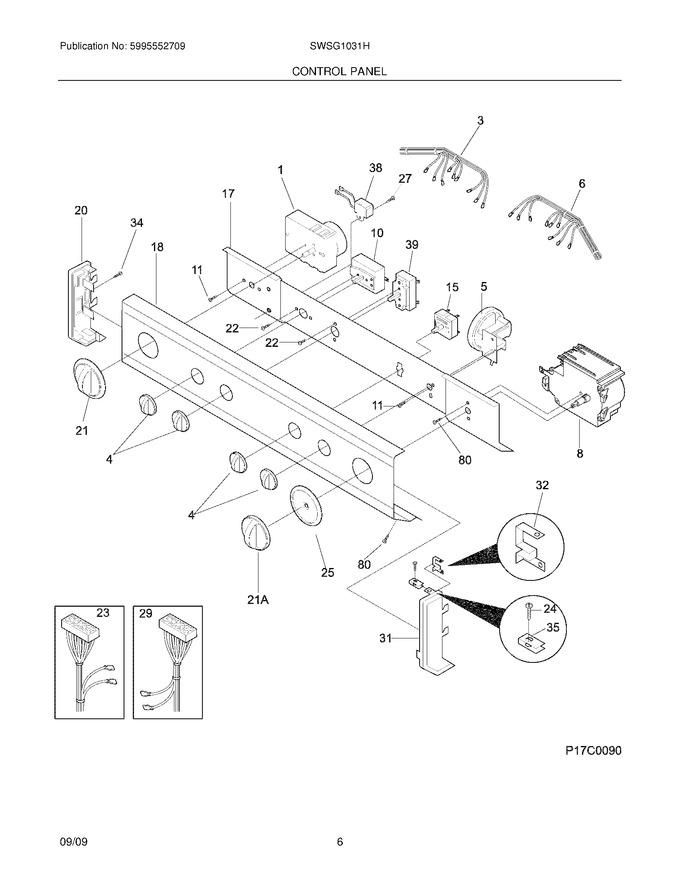

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131583801 | Timer,dryer ,3-off |
|
$ 336.65 | |||||
| 4 | 134844471 | Knob,rotary ,bisque |
|
- | |||||
| 5 | 137015000 | Switch,pressure ,3 Position |
|
$ 76.81 | |||||
| 11 | 218359202 | Screw,cr Pan Head `8-32 X 0.250 ,thread Forming (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 17 | 134263410 | Bracket,control Mount |
|
- | |||||
| 18 | 137003200 | Panel,trimplate ,bisque ,console Front |
|
- | |||||
| 20 | 131288104 | End Cap,bisque ,lh |
|
- | |||||
| 21 | 134043001 | Knob,dryer Timer ,bisque |
|
- | |||||
| 22 | 3161259 | Screw,switch Mtg ,6-32 X 0 .19 ,(2) ,sems |
|
$ 6.83 | |||||
| 24 | 134156200 | Screw,flat Head ,8-18ab X 0.44 ,quad Drive |
|
Immediately | $ 14.89 | ||||
| 25 | 131976805 | Indicator,timer Pointer ,bisque/dk Brown,washer |
|
- | |||||
| 27 | 131892100 | Screw,6-20b X 0.230 |
|
- | |||||
| 31 | 131288214 | End Cap,bisque ,rh ,without Cut Out |
|
- | |||||
| 32 | 3204357 | Clip-grounding |
|
$ 60.11 | |||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 35 | 5308014350 | Clip,end Cap Mtg ,u-type |
|
- | |||||
| 80 | 131168200 | Screw,10-16ab X 0.375 (Replaces: 134547800) |
|
Immediately | $ 14.18 | ||||
| 21A | 134043201 | Knob,washer Timer ,bisque |
|
- | |||||
| F10 | 134399700 | Switch,start ,lcd |
|
Immediately | $ 83.77 | ||||
| F15 | 134410100 | Switch,temperature ,3 Position |
|
$ 45.68 | |||||
| F23 | 134605800 | Wiring Harness,main |
|
- | |||||
| F29 | 137131400 | Wiring Harness,washer ,lower |
|
- | |||||
| F3 | 131703600 | Wiring Harness,dryer Control |
|
- | |||||
| F38 | 5303286537 | Buzzer |
|
$ 93.61 | |||||
| F39 | 134399800 | Switch,dryer Temp ,rotary 4 Pos |
|
$ 70.78 | |||||
| F6 | 137061000 | Wiring Harness,washer Control |
|
$ 166.01 | |||||
| F8 | 134924400 | Timer,4-off W/bitron ,washer |
|
$ 341.18 | |||||
| FNI | 134101400 | Terminal Block,main |
|
Immediately | $ 55.99 | ||||
| NI | 5304426200 | Screw,terminal Block |
|
- | |||||
| NI | 131209800 | Clamp,hose ,pressure Switch |
|
$ 65.92 |
