Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67292-1 Shield, Light Appelez-nous -
2 67176-1 Trim, Frz. Shelf Front Appelez-nous -
3 67177-1 Trim, Frz. Shelf Front Appelez-nous -
4 67178-1 Shelf, Frz. Appelez-nous -
5 67178-5 Shelf, Frz. Appelez-nous -
6 406008-1 Screw Appelez-nous -
7 67655-1 Front Appelez-nous -
8 67121-1 Basket, Wire Appelez-nous -
9 67122-1 Clip,frz Basket Appelez-nous -
10 67123-1 Roller,wheel Basket Appelez-nous -
11 67124-1 Space Roller Appelez-nous -
12 67488-1 Clip, Basket Stop Appelez-nous -
13 65275-19 Screw Appelez-nous -
14 W11384469 Switch, Light   (Replaces: 66987-1) In-Stock Immediately $ 33.51

15 67466-1 Cup, Shelf Appelez-nous -
16 W11679940 Bulb, Light   (Replaces: 31956-1) In-Stock Immediately $ 10.17

17 29814-2 Receptacle, Light Appelez-nous -
18 68187-1 Cap, Connector Appelez-nous -
19 60313-1 Cup, Shelf Appelez-nous -
19 67114-3 Shelf, Ice Tray Appelez-nous -
20 400014-12 Screw, Support Bracket Appelez-nous -
21 67344-1 Support, Light Shield Appelez-nous -
22 66325-22 Seal,fan Shield Appelez-nous -
22 67225-1 Shield, Fan Appelez-nous -
23 67297-3 Cover, Coil Appelez-nous -
24 66325-14 Seal, Foam Tray Appelez-nous -
25 66325-21 Seal (44``) Appelez-nous -
26 67353-1 Shield, Air Directional Appelez-nous -
26 WP489478 Screw   (Replaces: 400017-1) Special Order $ 6.98

27 52120-1 Blade, Fan Frzr. Appelez-nous -
28 64856-2 Bracket, Fan Motor Appelez-nous -
29 67865-1 Wire Harness Appelez-nous -
30 W11772394 Screw   (Replaces: 400021-1) In-Stock Immediately $ 10.94

30 400015-12 Screw Appelez-nous -
30 67335-5 Cover, Coil Lower Appelez-nous -
31 67562-1 Coil Cover, Gasket Appelez-nous -
32 52526-1 Grommet Appelez-nous -
33 26527-9 Drain Tube Appelez-nous -
34 WP488729 Screw   (Replaces: 9986-45) In-Stock Immediately $ 7.01

35 WPM0114003 Clamp, Spring   (Replaces: 60333-4) Special Order $ 9.95

36 WPB5705307 Tubing   (Replaces: 67579-10) Special Order $ 11.19

37 68307-2 Grommet, Water Entry Appelez-nous -
38 WP488366 Clamp, Feeder Tube   (Replaces: 23197-8) Special Order $ 10.06

38 WP489478 Screw   (Replaces: 400017-1) Special Order $ 6.98

39 67288-1 Bracket, Mounting Appelez-nous -
40 400026-1 Screw Appelez-nous -
41 WP841180A Tray, Ice   (Replaces: 59281-5) In-Stock Immediately $ 41.00

42 67676-1 Tube, Fill Appelez-nous -
42 67593-3 Plug, Tube Appelez-nous -
43 420092-900 Washer, Spring Appelez-nous -
44 WP67001255 Pan, Ice   (Replaces: 67140-1) Special Order $ 182.77

45 W11233072 Screw   (Replaces: 400016-1) In-Stock Immediately $ 12.62

45 67143-1 Support Ice Shelf Appelez-nous -
46 59920-1 Stud, Mounting Coil Cover Appelez-nous -
47 67557-1 Plug Button Appelez-nous -
47 53732-2 U-nut Grounding Appelez-nous -
47 67060-1 Clip, Mullion Appelez-nous -
47 67685-1 Retainer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

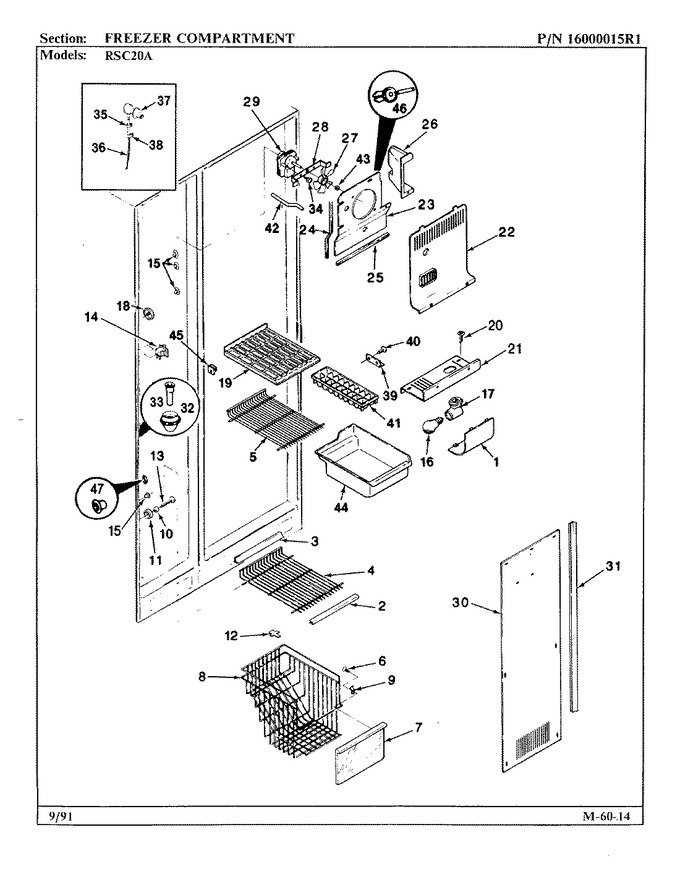

Diagram for RSC20A (BOM: AM01C)
