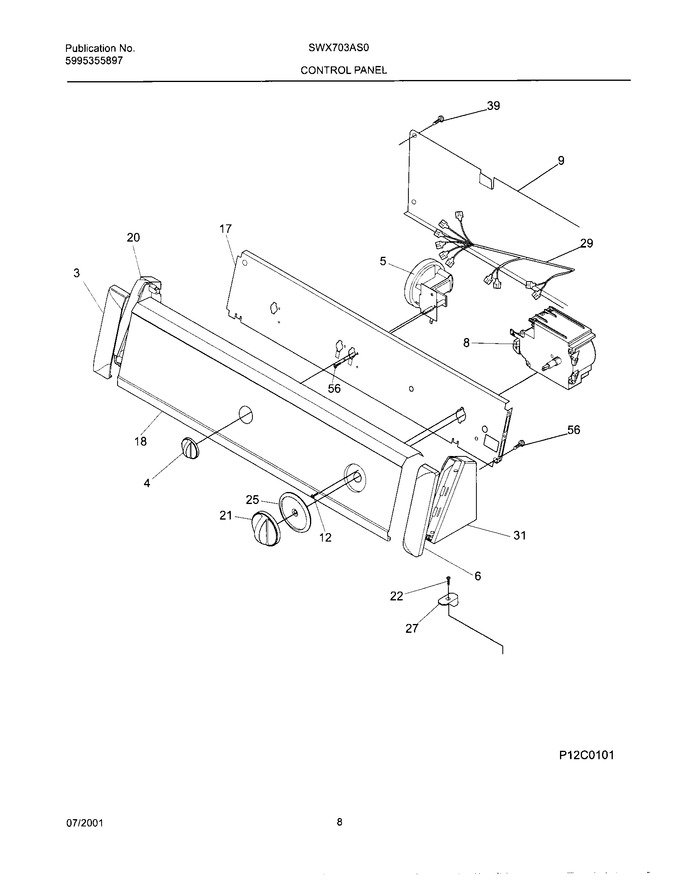

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob-rotary,white/gray				$ 33.34
5	134411600		Pressure-sw 3pos-90-2.7-3/4 Hp   (Replaces: 134053800)				$ 138.92
6	131122601		Cover-end Cap, White, Rh				$ 47.20
8	131964100		Timer Elec H Mallory-delta			Immediately	$ 279.77
9	131141730		Backsheet		Appelez-nous	-
12	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
17	131580006		Bracket-control		Appelez-nous	-
18	134075000		Trimplate Wwa1htnf		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131592001		Knob-timer White				$ 45.57
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131592103		Dial-timer				$ 50.08
27	131197000		Clip-control Panel				$ 13.62
29	131980700		Harn H Mallory		Appelez-nous	-
31	131122701		End Cap, White, Rh				$ 53.29
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
