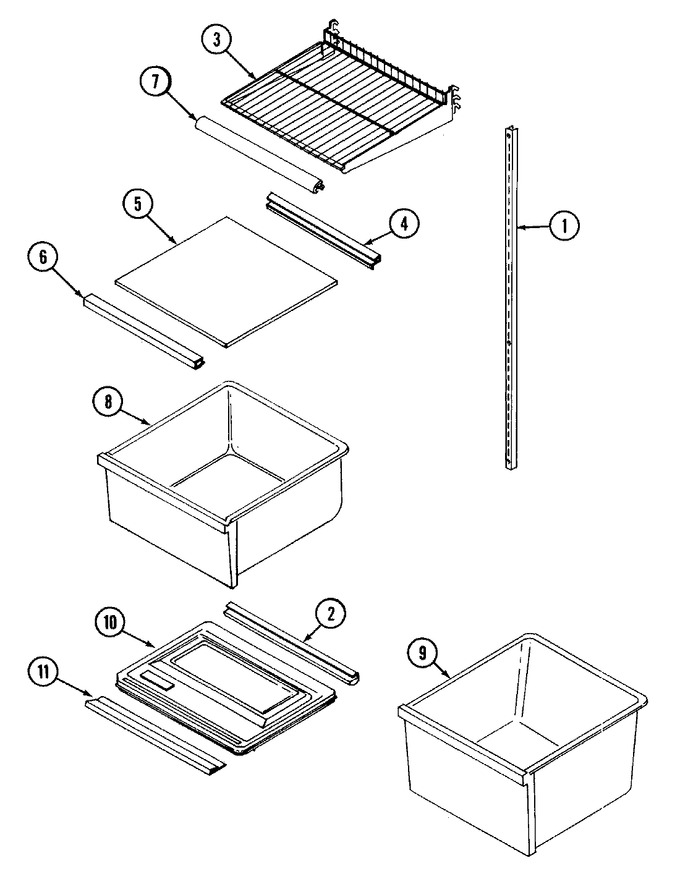

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	400037-28		Screw	10	Appelez-nous	-
1	67311-1		Rail, Shelf Support	10	Appelez-nous	-
2	65649-1		Seal, Meat Pan (rear)	10	Appelez-nous	-
3	70105-8		Shelf, Wire	10	Appelez-nous	-
4	68157-1		Seal, Crisper Pan (rear)	10	Appelez-nous	-
5	65687-5		Shelf, Crisper	10	Appelez-nous	-
6	66650-1		Trim	10	Appelez-nous	-
7	70109-3		Trim, Shelf	10	Appelez-nous	-
8	66636-147		Pan, Crisper	10	Appelez-nous	-
9	66636-144		Pan, Meat	10	Appelez-nous	-
10	65608-3		Cover, Meat Pan	10	Appelez-nous	-
11	65648-1		Seal, Meat Pan (front)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
