SELECT A DIAGRAM

01 - Cover


03 - Cabinet/top


05 - Motor/tub


07 - Transmission


09 - Control/panel

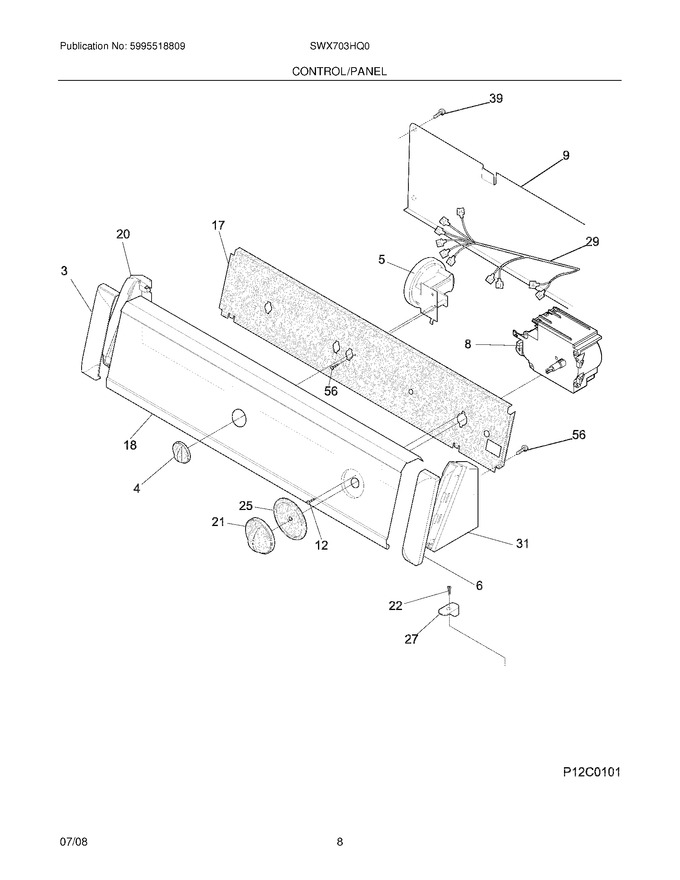

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131122613		Cover,end Cap ,bisque ,lh		Appelez-nous	-
4	131141107		Knob,rotary ,bisque/dk Brown		Appelez-nous	-
5	134411600		Switch,pressure ,3 Position				$ 138.92
6	131122603		Cover,end Cap ,bisque ,rh		Appelez-nous	-
9	134088700		Panel,console Back		Appelez-nous	-
12	131168200		Screw,pan Head ,10.16ab X 0.375   (Replaces: 131477001)			Immediately	$ 14.18
17	134487900		Bracket,control Mtg.		Appelez-nous	-
18	137000500		Panel,trimplate ,bisque ,console Front		Appelez-nous	-
20	131122713		End Cap,bisque ,lh		Appelez-nous	-
21	131592004		Knob,timer ,bisque		Appelez-nous	-
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	131592106		Pointer-timer Bsq/dr Brwn		Appelez-nous	-
27	131197000		Clip-console Mtg				$ 13.62
29	134545500		Wiring Harness,washer		Appelez-nous	-
31	131122703		End Cap,bisque ,rh		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F8	131964100		Timer,washer			Immediately	$ 279.77

    View Diagram in Separate Window       Print Part List
