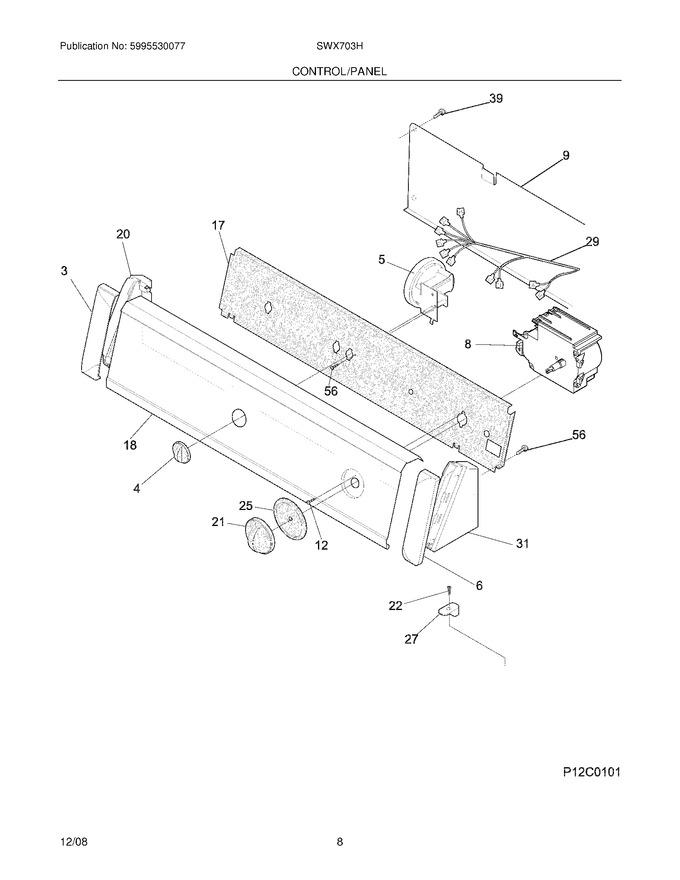

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	131141105		Knob,rotary ,white/dk Gray				$ 33.34
5	137014900		Switch,pressure				$ 39.85
6	131122601		Cover-end Cap, White, Rh				$ 47.20
9	134088700		Panel,console Back		Appelez-nous	-
12	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
17	134487900		Bracket,control Mtg.		Appelez-nous	-
18	137000400		Panel,trimplate ,white ,console Front		Appelez-nous	-
20	131122714		End Cap,white ,lh				$ 32.32
21	131592001		Knob-timer White				$ 45.57
22	131266330		Screw,8-18 X 1.250				$ 7.63
25	131592105		Pointer,timer Knob ,white ,dark Gray Ind.				$ 65.05
27	131197000		Clip-console Mtg				$ 13.62
29	137005200		Wiring Harness,washer		Appelez-nous	-
31	131122701		End Cap, White, Rh				$ 53.29
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F8	134936500		Timer				$ 459.38
