SELECT A DIAGRAM
New Model Search:

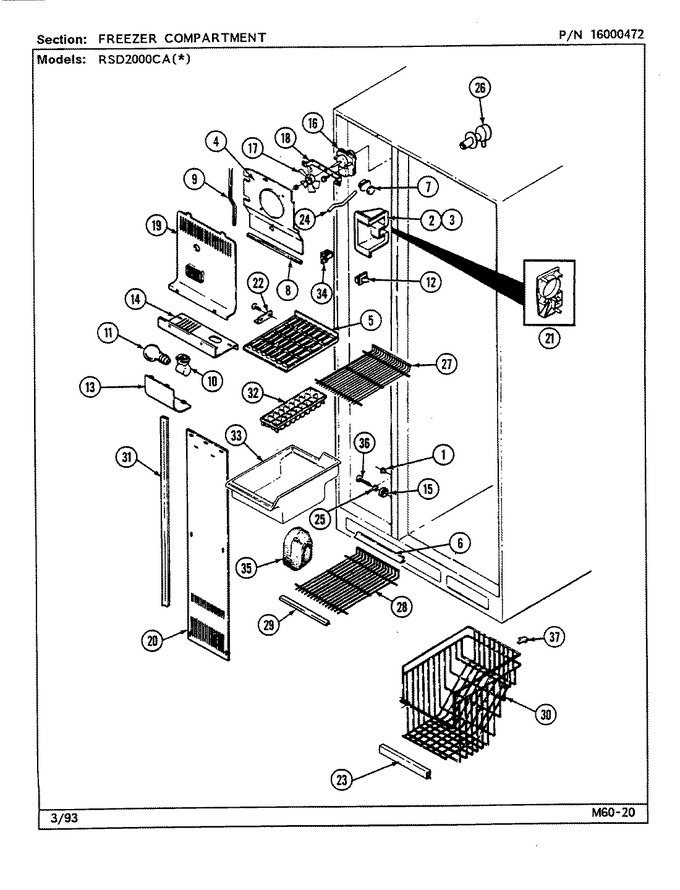

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67466-1 | Cup, Shelf | 10 |
|
- | ||||
| 2 | 67353-1 | Shield, Air Directional | 10 |
|
- | ||||
| 3 | 52077-10 | Seal | 10 |
|
- | ||||
| 4 | 67297-5 | Cover, Coil (upper) | 10 |
|
- | ||||
| 5 | 67114-3 | Shelf, Ice Tray | 10 |
|
- | ||||
| 6 | 67177-8 | Trim, Shelf Rear | 10 |
|
- | ||||
| 7 | 68187-1 | Cap, Connector | 10 |
|
- | ||||
| 8 | 68946-4 | Seal | 10 |
|
- | ||||
| 9 | 66325-21 | Seal (44``) | 10 |
|
- | ||||
| 10 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 11 | W11679940 | Bulb, Light (Replaces: 31956-1) | 10 |
|
Immediately | $ 10.17 | |||
| 12 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 13 | 67292-1 | Shield, Light | 10 |
|
- | ||||
| 14 | 67344-3 | Support, Light Shield | 10 |
|
- | ||||
| 15 | 67123-2 | Roller Wheel | 10 |
|
- | ||||
| 16 | WP61004888 | Motor, Fan Evaporator (Replaces: 69298-1) | 10 |
|
Immediately | $ 104.99 | |||
| 17 | 52120-4 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 18 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 19 | 67225-1 | Shield, Fan | 10 |
|
- | ||||
| 20 | 400015-12 | Screw | 10 |
|
- | ||||
| 20 | 67335-2 | Cover, Coil Lower | 10 |
|
- | ||||
| 21 | 67352-1 | Orifice, Frz. Control (outlet) | 10 |
|
- | ||||
| 22 | 67288-1 | Bracket, Mounting | 10 |
|
- | ||||
| 23 | 67176-55 | Trim, Frz Shelf Front | 10 |
|
- | ||||
| 24 | 67676-1 | Tube, Fill | 10 |
|
- | ||||
| 25 | 67124-1 | Space Roller | 10 |
|
- | ||||
| 26 | 69219-1 | Grommet | 10 |
|
- | ||||
| 27 | 67178-9 | Shelf, Frz. | 10 |
|
- | ||||
| 28 | 67178-7 | Shelf, Frz. (no.2,3,4,5) | 10 |
|
- | ||||
| 29 | 67176-56 | Trim, Frz Shelf Front | 10 |
|
- | ||||
| 30 | 69353-1 | Basket, Frz. | 10 |
|
- | ||||
| 31 | 69314-1 | Seal Cover (side) | 10 |
|
- | ||||
| 32 | WP841180A | Tray, Ice (Replaces: 59281-5) | 10 |
|
Immediately | $ 41.00 | |||
| 33 | WP67001255 | Pan, Ice (Replaces: 69919-1) | 10 |
|
$ 182.77 | ||||
| 34 | 67143-1 | Support Ice Shelf | 10 |
|
- | ||||
| 35 | 67837-1 | Insulation, Air Return | 10 |
|
- | ||||
| 36 | 65275-19 | Screw | 10 |
|
- | ||||
| 37 | 67488-2 | Clip, Stop | 10 |
|
- |
