SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Optional Ice Maker Kit (rae3100aax)

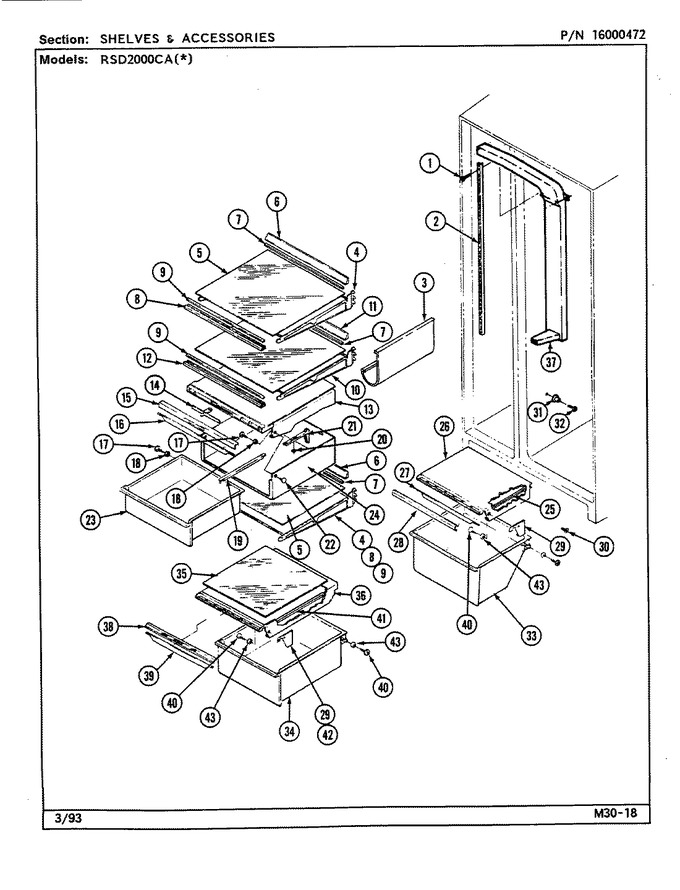

08 - Shelves & Accessories


09 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	400037-28		Screw	10	Appelez-nous	-
2	67311-1		Rail, Shelf Support	10	Appelez-nous	-
3	67308-5		Holder, Wine Bottle	10	Appelez-nous	-
4	67273-1		Frame, Shelf	10	Appelez-nous	-
5	67267-11		Shelf, Cant Glass	10	Appelez-nous	-
6	67309-43		Trim, Cant Shelf Rear	10	Appelez-nous	-
7	67266-4		Gasket, Shelf Rear	10	Appelez-nous	-
8	67783-29		Trim, Cant Shelf Front	10	Appelez-nous	-
9	67265-4		Gasket, Shelf Front	10	Appelez-nous	-
10	67274-1		Frame, Cantilever	10	Appelez-nous	-
11	67309-44		Trim, Cant Shelf Rear	10	Appelez-nous	-
12	67783-30		Trim, Cant Shelf Front	10	Appelez-nous	-
13	67649-11		Support, Meat Pan	10	Appelez-nous	-
14	67074-2		Slide, Control	10	Appelez-nous	-
15	67071-8		Trim, Meat Pan Support	10	Appelez-nous	-
16	67677-2		Seal, Meat Pan	10	Appelez-nous	-
17	65275-6		Screw	10			$ 5.48
18	67423-1		Roller, Crisper Pan	10	Appelez-nous	-
19	67073-4		Linkage, Meat Pan	10	Appelez-nous	-
20	431019-511		Nut	10	Appelez-nous	-
21	67072-10		Actuator	10	Appelez-nous	-
22	67688-3		Plug Button	10			$ 4.83
23	69928-3		Pan, Meat	10	Appelez-nous	-
24	67069-10		Housing, Meat Pan	10	Appelez-nous	-
25	69779-1		Seal	10	Appelez-nous	-
26	67892-5		Shelf, Lower	10	Appelez-nous	-
27	69798-6		Seal, Crisper Pan	10	Appelez-nous	-
28	67204-32		Trim	10	Appelez-nous	-
29	67895-2		Support, Crisper Shelf (rt)	10	Appelez-nous	-
29	67895-1		Support, Crisper Shelf (lt)	10	Appelez-nous	-
30	65275-28		Screw	10	Appelez-nous	-
31	67764-1		Support, Crisper Shelf	10			$ 8.05
32	W11233072		Screw   (Replaces: 400026-12)	10		Immediately	$ 12.62
33	69928-1		Pan, Crisper	10	Appelez-nous	-
34	69928-5		Pan, Crisper	10	Appelez-nous	-
35	67489-9		Shelf, Crisper Glass	10	Appelez-nous	-
36	67891-3		Shelf, Upper----na	10	Appelez-nous	-
37	67526-2		Tunnel, Air	10	Appelez-nous	-
37	28013-2		Rivet, Air Tunnel	10	Appelez-nous	-
38	67204-30		Trim	10	Appelez-nous	-
39	69798-6		Seal, Crisper Pan	10	Appelez-nous	-
40	65275-34		Screw	10	Appelez-nous	-
41	69779-2		Seal, Crisper	10	Appelez-nous	-
42	65275-28		Screw	10	Appelez-nous	-
43	67423-1		Roller, Crisper Pan	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
