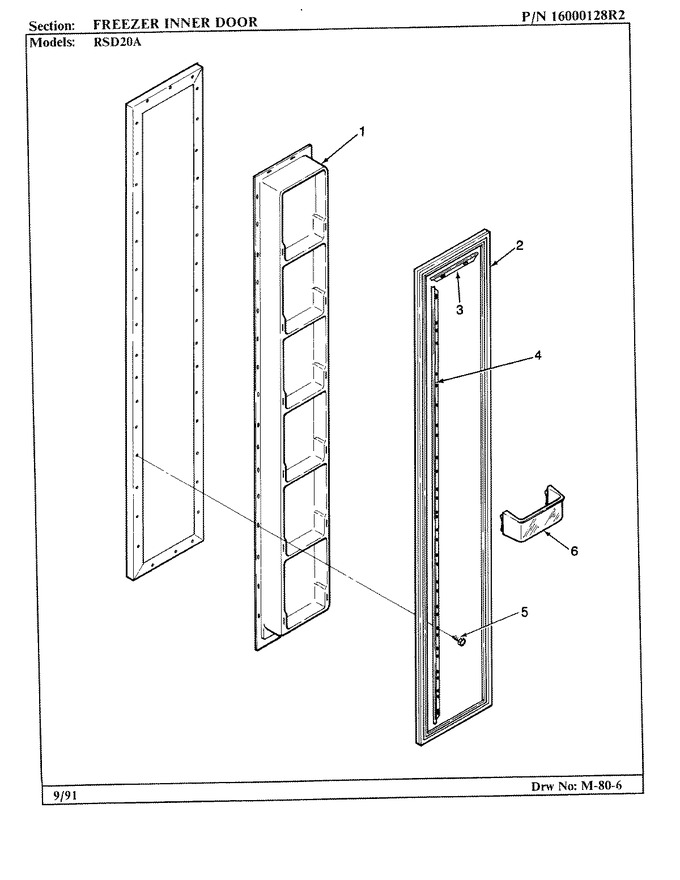

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67014-1		Liner, Frz.door	-	Appelez-nous	-
2	67745-2		Gasket, Frz. Door	-	Appelez-nous	-
3	67032-5		Retainer, Door Seal	-	Appelez-nous	-
4	67032-1		Retainer, Door Seal	-	Appelez-nous	-
5	65275-5		Screw	-	Appelez-nous	-
6	67086-1		Front, Pick Off Frz.	-	Appelez-nous	-
