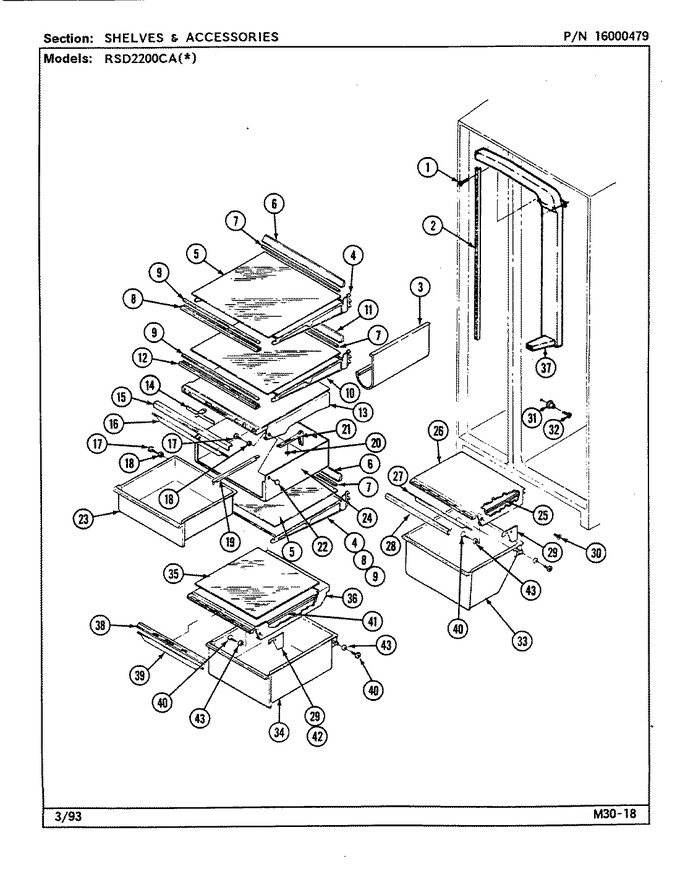

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 400037-28 | Screw | 10 |
|
- | ||||
| 2 | 67311-1 | Rail, Shelf Support | 10 |
|
- | ||||
| 3 | 67308-5 | Holder, Wine Bottle | 10 |
|
- | ||||
| 4 | 67273-2 | Frame, Shelf | 10 |
|
- | ||||
| 5 | 67267-12 | Shelf, Cant Glass | 10 |
|
- | ||||
| 6 | 67309-40 | Trim, Shelf | 10 |
|
- | ||||
| 7 | 67266-5 | Shelf Seal | 10 |
|
- | ||||
| 8 | 67783-27 | Trim, Cant Shelf Front | 10 |
|
- | ||||
| 9 | 67265-5 | Gasket, Shelf Front | 10 |
|
- | ||||
| 10 | 67274-2 | Frame, Meat Shelf | 10 |
|
- | ||||
| 11 | 67309-41 | Trim, Meat Shelf | 10 |
|
- | ||||
| 12 | 67783-28 | Trim, Cant Shelf Front | 10 |
|
- | ||||
| 13 | 67649-11 | Support, Meat Pan | 10 |
|
- | ||||
| 14 | 67491-2 | Slide, Control | 10 |
|
- | ||||
| 15 | 67071-8 | Trim, Meat Pan Support | 10 |
|
- | ||||
| 16 | 67677-2 | Seal, Meat Pan | 10 |
|
- | ||||
| 17 | 65275-6 | Screw | 10 |
|
$ 5.48 | ||||
| 18 | 67423-1 | Roller, Crisper Pan | 10 |
|
- | ||||
| 19 | 67073-4 | Linkage, Meat Pan | 10 |
|
- | ||||
| 20 | 431019-511 | Nut | 10 |
|
- | ||||
| 21 | 67072-10 | Actuator | 10 |
|
- | ||||
| 22 | 67688-3 | Plug Button | 10 |
|
$ 4.83 | ||||
| 23 | 69928-3 | Pan, Meat | 10 |
|
- | ||||
| 24 | 67069-10 | Housing, Meat Pan | 10 |
|
- | ||||
| 25 | 69779-1 | Seal | 10 |
|
- | ||||
| 26 | 67892-6 | Shelf, Crisper (lower) | 10 |
|
- | ||||
| 27 | 69798-7 | Seal, Crisper Pan | 10 |
|
- | ||||
| 28 | 67204-14 | Trim, Crisper Shelf | 10 |
|
- | ||||
| 29 | 67895-1 | Support, Crisper Shelf (lt) | 10 |
|
- | ||||
| 29 | 67895-2 | Support, Crisper Shelf (rt) | 10 |
|
- | ||||
| 30 | 65275-28 | Screw | 10 |
|
- | ||||
| 31 | 67764-1 | Support, Crisper Shelf | 10 |
|
$ 8.05 | ||||
| 32 | W11233072 | Screw (Replaces: 400026-12) | 10 |
|
Immediately | $ 12.62 | |||
| 33 | 69928-8 | Pan, Crisper | 10 |
|
- | ||||
| 34 | 69928-4 | Pan, Crisper | 10 |
|
- | ||||
| 35 | 67489-10 | Glass, Crisper Shelf | 10 |
|
- | ||||
| 36 | 67891-4 | Shelf, Crisper (upper) | 10 |
|
- | ||||
| 37 | 67526-2 | Tunnel, Air | 10 |
|
- | ||||
| 37 | 28013-2 | Rivet, Air Tunnel | 10 |
|
- | ||||
| 38 | 67204-31 | Trim | 10 |
|
- | ||||
| 39 | 69798-7 | Seal, Crisper Pan | 10 |
|
- | ||||
| 40 | 65275-34 | Screw | 10 |
|
- | ||||
| 41 | 69779-2 | Seal, Crisper | 10 |
|
- | ||||
| 42 | 65275-28 | Screw | 10 |
|
- | ||||
| 43 | 67423-1 | Roller, Crisper Pan | 10 |
|
- |
