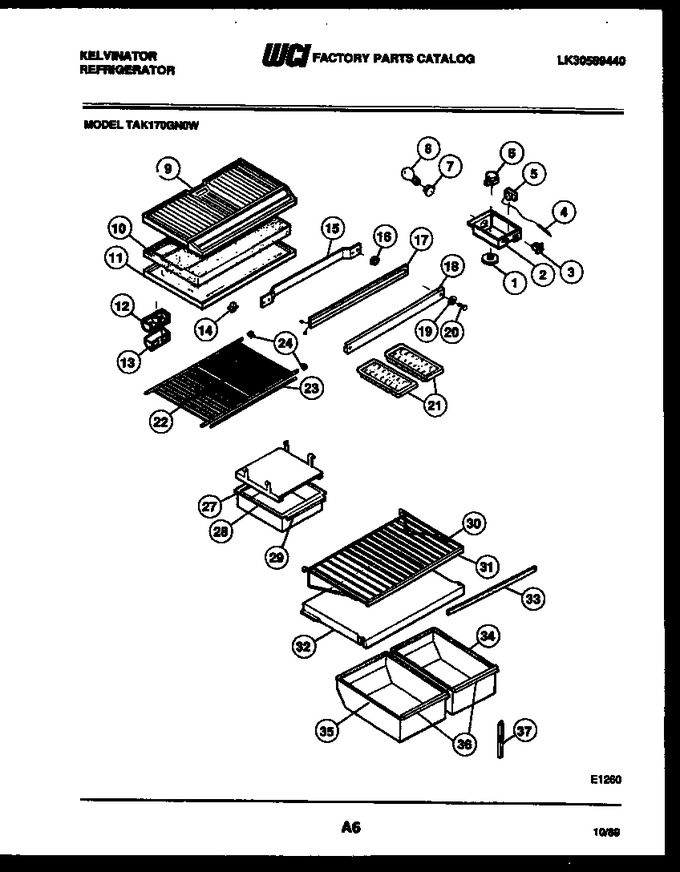

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G490107-02 | Knob-temp Control |
|
- | |||||
| 2 | G176722-03 | Control Box |
|
- | |||||
| 3 | G178402-01 | Switch-energy Saver |
|
- | |||||
| 4 | G142176-11 | Sleeve-plastic |
|
- | |||||
| 5 | 3200810 | Control-temperature |
|
- | |||||
| 6 | G187484 | Timer-defrost |
|
- | |||||
| 7 | G168302 | Light Socket |
|
- | |||||
| 8 | G25806 | Light Bulb |
|
- | |||||
| 9 | G490022-01 | Bottom Panel-freezer |
|
- | |||||
| 10 | G176774 | Divider-styrofoam |
|
- | |||||
| 11 | 3016378 | Top Panel-refr |
|
- | |||||
| 12 | G162675 | Air Deflector |
|
- | |||||
| 13 | G162178 | Cover, Deflector |
|
- | |||||
| 14 | G187200 | Light Switch |
|
- | |||||
| 15 | G166709 | Strap-mullion Mtg |
|
- | |||||
| 16 | 3200464 | Spacer-mullion |
|
- | |||||
| 17 | G177255 | Heater, Mullion |
|
- | |||||
| 18 | 3916133 | Mullion, Coffee |
|
- | |||||
| 19 | G166847 | Washer-no. 10 Steel (2) |
|
- | |||||
| 20 | G183103 | Screw-10-24 X 7/8 (4) |
|
- | |||||
| 21 | G156376-18 | Ice Tray (2) |
|
- | |||||
| 22 | G177059-01 | Shelf, Freezer |
|
- | |||||
| 23 | G172434-15 | Trim-freezer Shelf |
|
- | |||||
| 24 | G166495-01 | End Cap-shelf (2) |
|
- | |||||
| 27 | G177106-01 | Cover, Meat Pan |
|
- | |||||
| 28 | G177623-06 | Meat Pan |
|
- | |||||
| 29 | G161013-67 | Trim-meat Pan |
|
- | |||||
| 30 | G177390-07 | Shelf-full (3) |
|
- | |||||
| 31 | G172434-48 | Trim-full Shelf (3) |
|
- | |||||
| 32 | G490016-03 | Cover-crisper Pan |
|
- | |||||
| 33 | G180108-04 | Gasket-pan Cover Rs |
|
- | |||||
| 34 | G178303-12 | Pan-moist Cold Rs |
|
- | |||||
| 35 | G178303-11 | Pan-veg/fruit Ls |
|
- | |||||
| 36 | G161013-65 | Trim-pan (2) |
|
- | |||||
| 37 | G166310-02 | Support-pan Cover |
|
- | |||||
| 10A | G174818 | Wiring Harness-divider (non-illustrated) |
|
- | |||||
| 11A | G162673 | Screw-panel Mtg (3) (non-illustrated) |
|
- | |||||
| 2A | G189592 | Label-control Box (non-illustrated) |
|
- | |||||
| 2B | G187363 | Screw |
|
- | |||||
| 5A | G107080 | Screw |
|
- | |||||
| 6A | G105289 | Screw |
|
- |
