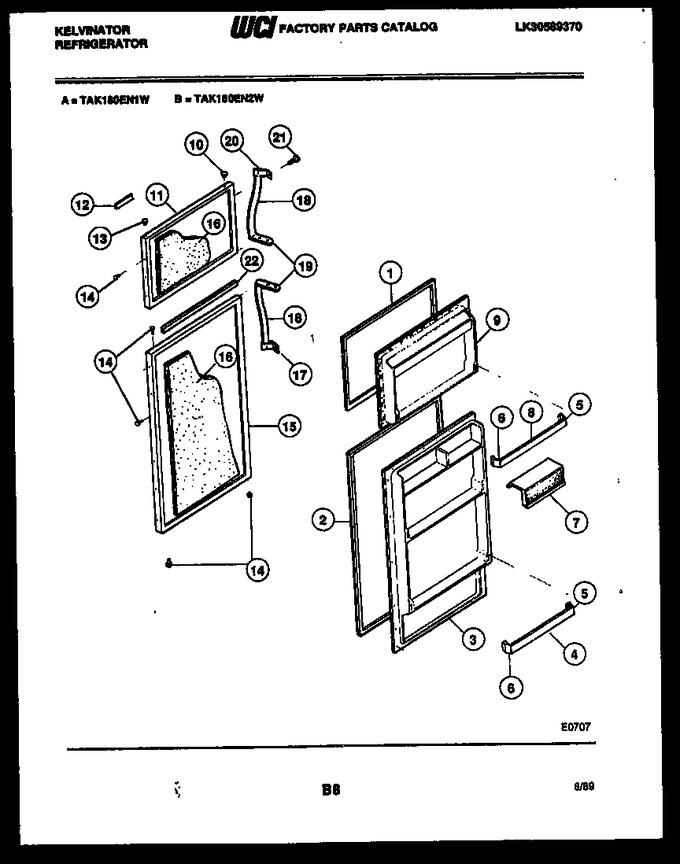

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186932-12		Gasket-freezer		Appelez-nous	-
2	G186932-13		Gasket-refrigerator		Appelez-nous	-
3	G183507-01		Inner Panel-refrigerator		Appelez-nous	-
4	3015420		Rack-refrigerator Door (2)		Appelez-nous	-
5	G178287-01		Support Rs (3)		Appelez-nous	-
6	G178284-01		Support Ls (3)		Appelez-nous	-
7	G161776-51		Dairy Door		Appelez-nous	-
8	3015419		Rack-freezer Door		Appelez-nous	-
9	G183506-01		Inner Panel-freezer		Appelez-nous	-
10	G169332-10		Button-plug, Coffee		Appelez-nous	-
11	3916271		Freezer Door-coffee		Appelez-nous	-
12	3205334		Nameplate-assy		Appelez-nous	-
13	G183138		Bearing Hinge (8)		Appelez-nous	-
14	G162977-10		Button Plug-coffee		Appelez-nous	-
15	3916276		Refrigerator Door-coffee		Appelez-nous	-
16	G89643		Insulation (bulk)		Appelez-nous	-
17	G189451-01		Handle End-bottom		Appelez-nous	-
18	3201377		Grip-handle (2)		Appelez-nous	-
19	G189453-01		Handle End (2)		Appelez-nous	-
20	G189452-01		Handle End-top		Appelez-nous	-
21	G185566		Screw		Appelez-nous	-
22	3015602		Trim-refr Door		Appelez-nous	-
18A	3200995		Insert Grip (2) (non-illustrated)		Appelez-nous	-
3A	G162585		Screw		Appelez-nous	-
9A	G162585		Screw		Appelez-nous	-
