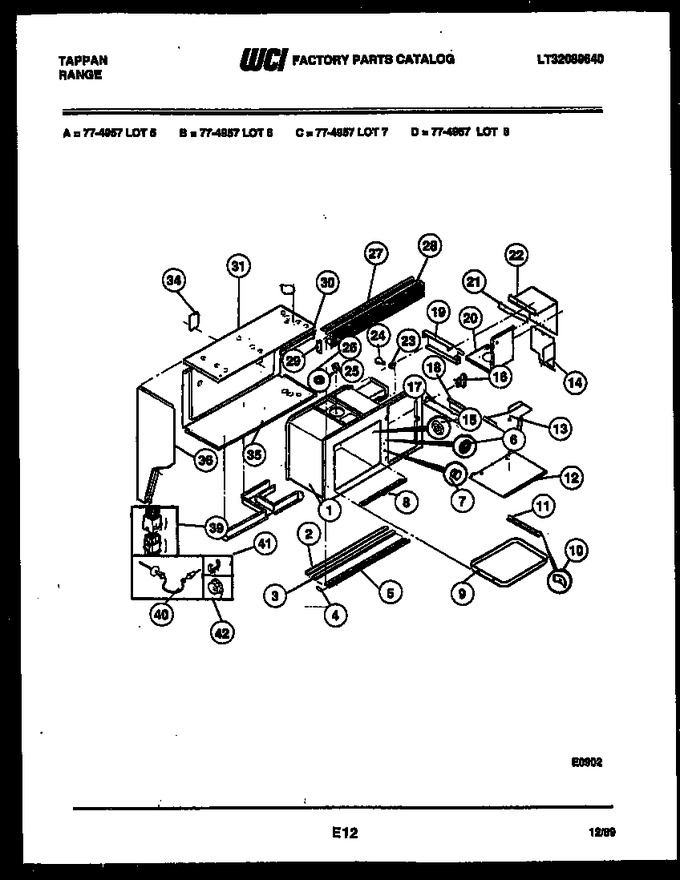

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 643T013P03 | Seal Micro (2) |
|
- | |||||
| 3 | 3200597 | Cover-micro Seal (2) |
|
- | |||||
| 4 | 123T082P01 | Cap End Lwr Trim (2) |
|
- | |||||
| 5 | 740T408P03 | Trim Vent Btm |
|
- | |||||
| 6 | 445T004P01 | Medallion Dr Strike |
|
- | |||||
| 7 | 287T003P08 | Grommet Dr Strike |
|
- | |||||
| 8 | 3200630 | Trim-front Main |
|
- | |||||
| 9 | 736T005P01 | Tray Oven |
|
- | |||||
| 10 | 241T017P219 | Fastnr Tray Glide |
|
- | |||||
| 11 | 3200607 | Glide-tray |
|
- | |||||
| 12 | 3200598 | Cover, Stirrer |
|
- | |||||
| 13 | 239T043S02 | Fan Stirrer |
|
- | |||||
| 14 | 174T267P01 | Cover Duct Btm Extension |
|
- | |||||
| 15 | 479T084P01 | Nut Recept Mtg |
|
- | |||||
| 16 | 597T035P01 | Receptacle, Probe |
|
- | |||||
| 17 | 008T480P01 | Angle, Air Baffle |
|
- | |||||
| 18 | 008T378F11 | Angle, Air Baffle |
|
- | |||||
| 19 | 136T321F02-18 | Channl Air |
|
- | |||||
| 20 | 211T044F04 | Duct, Bottom |
|
- | |||||
| 21 | 072T731F01 | Brackt Magnetron Support |
|
- | |||||
| 22 | 174T253S02 | Cover Duct Assy |
|
- | |||||
| 23 | 3091197 | Socket - Light |
|
- | |||||
| 24 | 374T024P01 | Light Bulb 100w |
|
- | |||||
| 25 | 115T463P01 | Mtr Stirrer |
|
- | |||||
| 26 | 789T061P01 | Washer Micro Seal |
|
- | |||||
| 27 | 612T101F01 | Retainer Vent Tr |
|
- | |||||
| 28 | 740T454P02 | Trim Vent Top |
|
- | |||||
| 29 | 123T081P05 | Cap End Lh Upper Trim |
|
- | |||||
| 30 | 655T307F02 | Shield Vent Rh |
|
- | |||||
| 31 | 529T079F05-18 | Panel Top Black |
|
- | |||||
| 34 | 3091338 | Cover Light Access |
|
- | |||||
| 35 | 805T023F06-18 | Wrapr Back & Btm |
|
- | |||||
| 36 | 3131907 | Panel Bodyside Lh-black |
|
- | |||||
| 39 | 355T442S01 | Plug Disconn. Kit Ovn. Elmnt. White |
|
- | |||||
| 40 | 115T563P03 | Probe Roast Cntrl |
|
- | |||||
| 42 | 102T028P01 | Bushing, Wire |
|
- | |||||
| *18999 | 560T786P01 | Label Cook Guide |
|
- | |||||
| *18999 | 241T017P154 | Fastnr Purselock |
|
- | |||||
| *18999 | 241T014P01 | Fastener |
|
- | |||||
| *18999 | 241T017P222 | Fastnr Wire Clip |
|
- | |||||
| *18999 | 241T017P136 | Fastnr Hinge Mtg (4) |
|
- | |||||
| *19000 | 241T017P195 | Fastnr Purselock |
|
- | |||||
| *19000 | 241T017P154 | Fastnr Purselock |
|
- | |||||
| *19000 | 557T028P01 | Plug Bttn Rack Glides (8) |
|
- | |||||
| *19000 | 331T117P01 | Insulator |
|
- | |||||
| 13A | 479T069P01 | Nut Stir Shaft To Fan (non-illustrated) |
|
- | |||||
| 20A | 636T090P05 | Screw Duct (2) (non-illustrated) |
|
- | |||||
| 29A | 123T081P06 | Cap End Rh Upper Trim |
|
- | |||||
| 29B | 636T090P34 | Screw End Cap 8a X 3/8 (2) (non-illustrated) |
|
- | |||||
| 30A | 655T307F03-18 | Shield Vent Lh |
|
- | |||||
| 36A | 3131908 | Panel Bodyside Rh-coffee |
|
- | |||||
| 39A | 355T442S02 | Plug Disconn Kit Surf Elmnt Red |
|
- | |||||
| 5A | 636T090P54 | Screw Btm Trim Mtg (3) (non-illustrated) |
|
- |
