SELECT A DIAGRAM

01 - Cartons


02 - Freezer Compartment


03 - Freezer Inner Door


04 - Freezer Outer Door


05 - Fresh Food Compartment


06 - Fresh Food Inner Door


07 - Fresh Food Outer Door


08 - Optional Ice Maker Kit


09 - Shelves & Accessories


10 - Unit Compartment & System

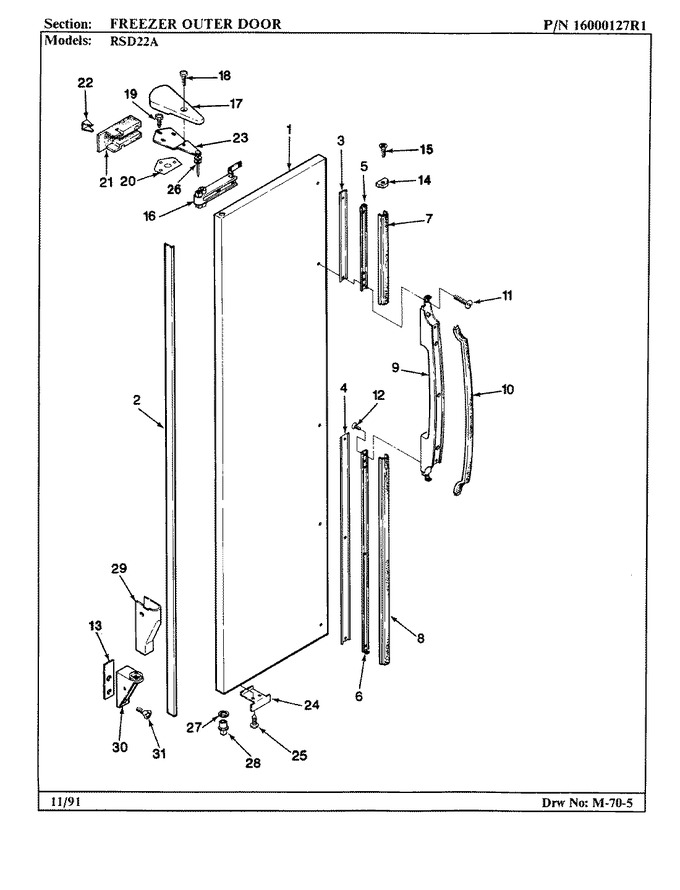

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72041-1-WW		Panel, Outer Door	-	Appelez-nous	-
1	72041-1-AM		Panel, Outer Door	-	Appelez-nous	-
2	66651-4		Trim, Door	-	Appelez-nous	-
3	67299-6		Shim, Trim Lock	-	Appelez-nous	-
4	67299-7		Shim, Trim Lock	-	Appelez-nous	-
5	67156-3		Bracket, Handle	-	Appelez-nous	-
6	67156-4		Bracket, Handle	-	Appelez-nous	-
7	67702-6		Trim, Extension	-	Appelez-nous	-
8	67702-7		Trim Extension	-	Appelez-nous	-
9	67385-1		Shim, Handle	-	Appelez-nous	-
9	67151-1		Handle, Door	-	Appelez-nous	-
10	67882-1		Insert, Handle (blk)	-	Appelez-nous	-
10	65275-44		Screw	-	Appelez-nous	-
11	65275-29		Screw,handle Bottom (hex Head)	-	Appelez-nous	-
11	66799-3		Clip, Handle Screw	-	Appelez-nous	-
12	65275-31		Screw, Bracket To Handle	-	Appelez-nous	-
13	67849-1		Shim Lower Hinge	-	Appelez-nous	-
13	67874-1		Tapping Plate, Lower Hinge	-	Appelez-nous	-
13	65275-10		Screw, Tapping Plate	-	Appelez-nous	-
14	67380-3		Endcap, Handle	-	Appelez-nous	-
15	414004-7		Screw, Handle End Cap	-	Appelez-nous	-
16	54485-2		Door Closure	-	Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)	-			$ 6.98
17	67229-3		Cover, Upper Hinge (alm.)	-	Appelez-nous	-
17	67229-4		Cover, Upper Hinge(wht.)	-	Appelez-nous	-
18	403060-1		Screw, Hinge Cover	-	Appelez-nous	-
19	WP3-24838-048		Screw   (Replaces: 9986-87)	-			$ 7.00
20	65031-1		Shim, Upper Hinge	-	Appelez-nous	-
21	67645-1		Insulation Door	-	Appelez-nous	-
22	52614-1		Bracket, Closer	-	Appelez-nous	-
23	67456-4		Hinge, Top	-	Appelez-nous	-
24	67771-1		Stop,door	-	Appelez-nous	-
25	9986-117		Screw	-	Appelez-nous	-
25	60123-2		Clip, Stop Screw	-	Appelez-nous	-
26	52185-2		Washer	-	Appelez-nous	-
27	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	-		Immediately	$ 45.86
28	67485-1		Pin Lower Hinge	-	Appelez-nous	-
29	401005-4		Screw, Cover	-	Appelez-nous	-
29	67117-2		Cover,lower Hinge	-	Appelez-nous	-
30	67772-2		Hinge, Lower	-	Appelez-nous	-
31	65275-46		Screw	-	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
