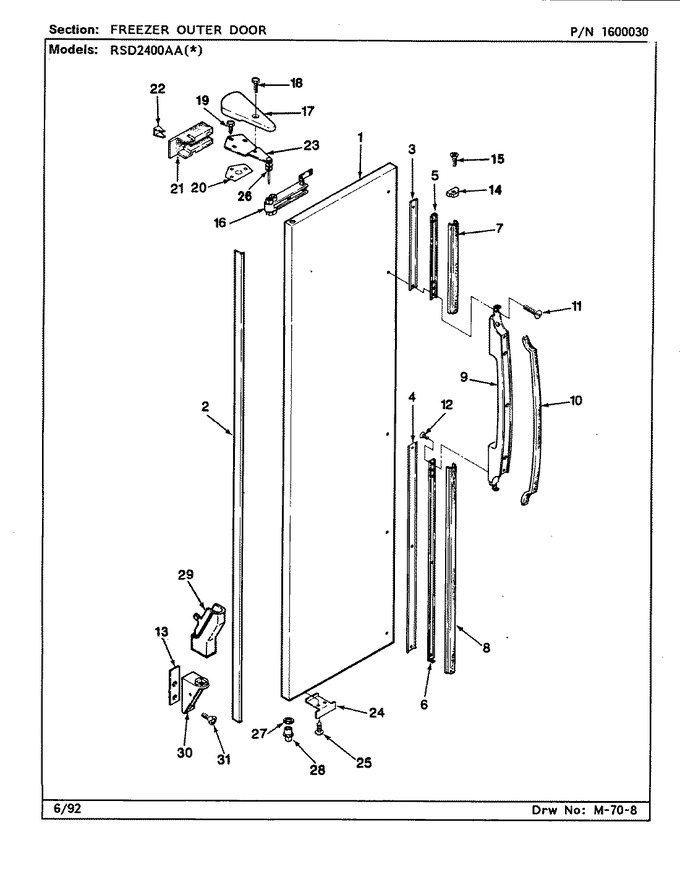

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72041-11-WW | Panel, Outer Door |
|
- | |||||
| 2 | 66651-4 | Trim, Door |
|
- | |||||
| 3 | 67299-6 | Shim, Trim Lock |
|
- | |||||
| 4 | 67299-7 | Shim, Trim Lock |
|
- | |||||
| 5 | 67156-3 | Bracket, Handle |
|
- | |||||
| 6 | 67156-4 | Bracket, Handle |
|
- | |||||
| 7 | 67702-6 | Trim, Extension |
|
- | |||||
| 8 | 67702-7 | Trim Extension |
|
- | |||||
| 9 | 67385-1 | Shim, Handle |
|
- | |||||
| 9 | 67151-1 | Handle, Door |
|
- | |||||
| 10 | 67882-1 | Insert, Handle (blk) |
|
- | |||||
| 10 | 65275-44 | Screw |
|
- | |||||
| 11 | 66799-3 | Clip, Handle Screw |
|
- | |||||
| 11 | 65275-29 | Screw,handle Bottom (hex Head) |
|
- | |||||
| 12 | 65275-31 | Screw, Bracket To Handle |
|
- | |||||
| 13 | 65275-59 | Screw |
|
- | |||||
| 13 | 67874-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 13 | 69031-2 | Shim |
|
- | |||||
| 14 | 67380-3 | Endcap, Handle |
|
- | |||||
| 15 | 414004-7 | Screw, Handle End Cap |
|
- | |||||
| 16 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 16 | 54485-2 | Door Closure |
|
- | |||||
| 20 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 21 | 67645-1 | Insulation Door |
|
- | |||||
| 22 | 52614-1 | Bracket, Closer |
|
- | |||||
| 23 | 67456-4 | Hinge, Top |
|
- | |||||
| 24 | 69022-1 | Stop, Door |
|
- | |||||
| 25 | 65275-48 | Screw |
|
- | |||||
| 25 | 67386-1 | Clip, Handle |
|
- | |||||
| 26 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 27 | 67483-4 | Washer |
|
- | |||||
| 28 | 68977-1 | Pin, Hinge |
|
- | |||||
| 29 | 68978-1 | Cover, Lower Hinge (blk) |
|
- | |||||
| 30 | 68975-2 | Hinge, Lower |
|
- | |||||
| 31 | 65275-51 | Screw, Lower Hinge |
|
- | |||||
| NI | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| NI | 403060-1 | Screw, Hinge Cover |
|
- | |||||
| NI | 67229-4 | Cover, Upper Hinge(wht.) |
|
- |
