SELECT A DIAGRAM

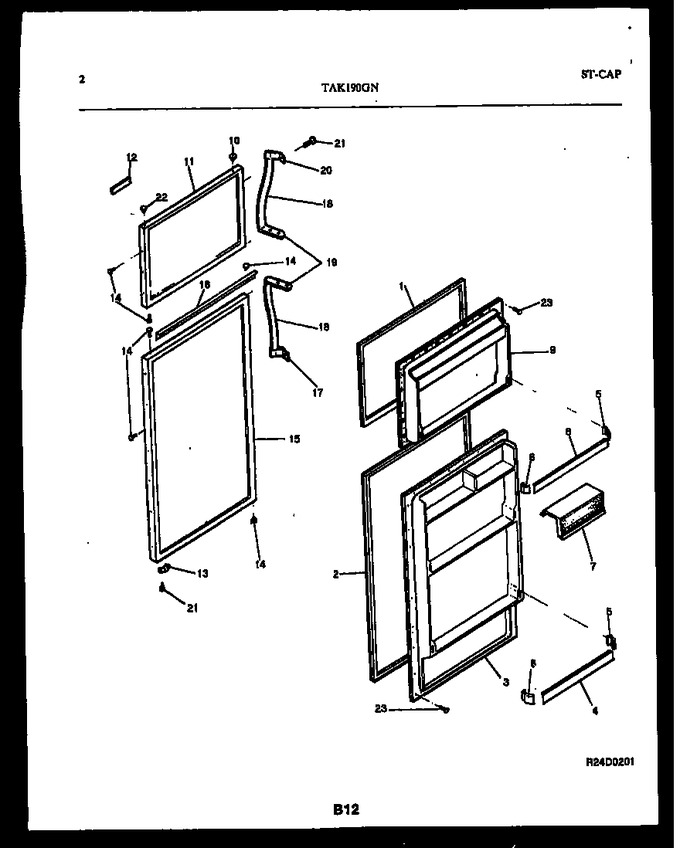

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001486 | Gasket-freezer Door, Magnetic |
|
- | |||||
| 2 | 5308015544 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303206569 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 3016559 | Rack-door, (2) |
|
- | |||||
| 5 | 5303007295 | Support-door Rack, Rh, (3) |
|
$ 32.55 | |||||
| 6 | 5303007297 | Support-door Rack, Lh, (3) |
|
$ 64.58 | |||||
| 7 | 5303206790 | Door-dairy |
|
- | |||||
| 8 | 5303206797 | Rack-door |
|
- | |||||
| 9 | 5303206550 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Button Plug, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 3916268 | Panel-frzr Door, White |
|
- | |||||
| 12 | 3205334 | Nameplate-assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Button Plug, White, Handle Holes (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 3916273 | Panel-refr Door, White |
|
- | |||||
| 16 | 3015602 | Trim-door |
|
- | |||||
| 17 | 5318945101 | Handle, End-bottom |
|
- | |||||
| 18 | 5303201377 | Grip-handle (2) |
|
$ 60.90 | |||||
| 19 | 5318945301 | Handle End, (2) |
|
- | |||||
| 20 | 5318945201 | Handle End-top |
|
- | |||||
| 21 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 22 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 23 | 08002748 | Screw |
|
- | |||||
| *18540 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 | |||||
| 18A | 5303200995 | Insert-handle Grip, (2) (non-illustrated) |
|
- |
