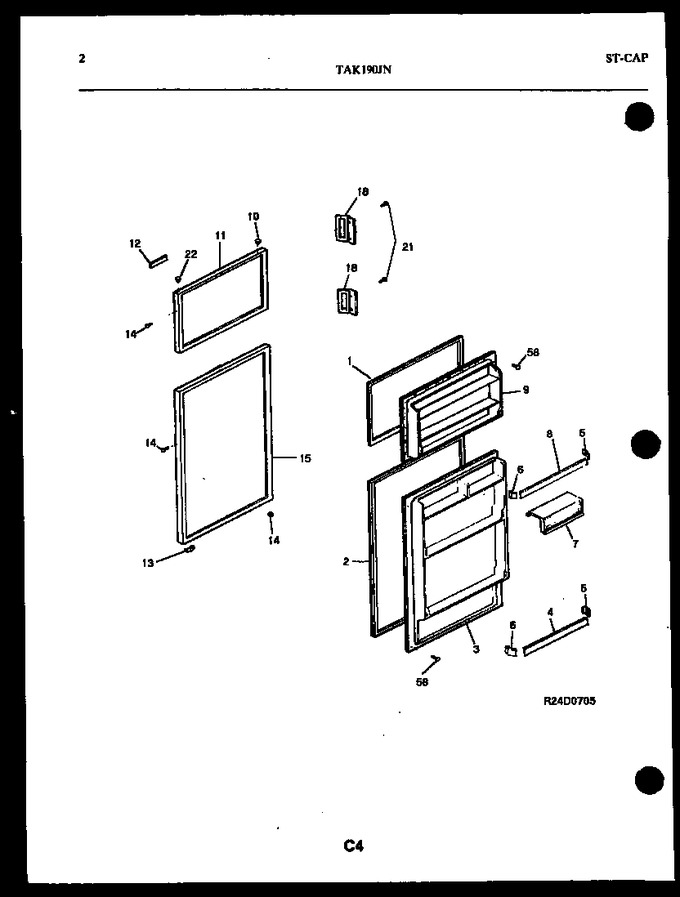

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Support
06 - Shelves And Support
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001486 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5308015544 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303206569 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303273270 | Rack-door, (2) |
|
- | |||||
| 5 | 5303007295 | Support-door Rack, Rh, (4) |
|
$ 32.55 | |||||
| 6 | 5303007297 | Support-door Rack, Lh, (4) |
|
$ 64.58 | |||||
| 7 | 5303273266 | Door-dairy |
|
- | |||||
| 8 | 5303273271 | Rack-door, (2) |
|
- | |||||
| 9 | 5303206550 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Button Plug, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 3916582 | Panel-frzr Door, Almond |
|
- | |||||
| 12 | 5303273164 | Nameplate Assy |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 5308000181 | Button Plug, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 3916587 | Panel-refr Door, Almond |
|
- | |||||
| 18 | 5303273080 | Handle-door, Almond, Refr |
|
- | |||||
| 18 | 5303273082 | Handle-door, Almond, Frzr |
|
- | |||||
| 21 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 22 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *19980 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 13A | 5308000255 | Door Stop, Frzr (non Illustrated) |
|
$ 42.20 |
