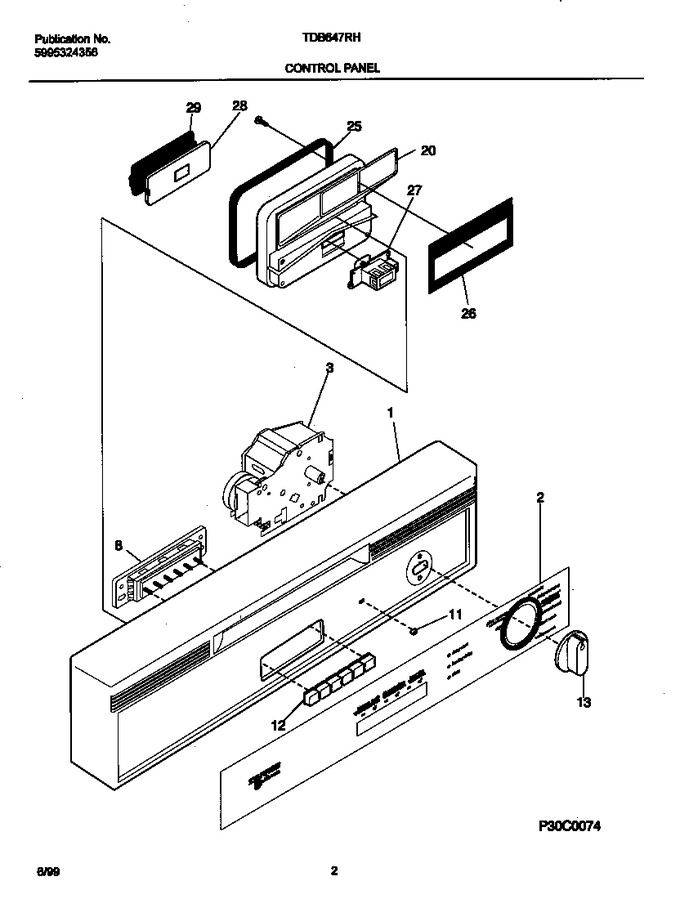

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222601		Panel-control, White		Appelez-nous	-
2	154358603		Insert-control Pnl,black		Appelez-nous	-
3	154295701		Timer		Appelez-nous	-
8	154214601		Switch-selector, 6 Button		Appelez-nous	-
11	5300809036		Lens-light				$ 20.90
12	154253701		Pushbutton, White, (6)		Appelez-nous	-
13	154253601		Knob-timer, White		Appelez-nous	-
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226401		Gasket-valve				$ 51.14
*64440	154131203		Shield-timer		Appelez-nous	-
*64441	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
*64442	154242201		Shield-switch		Appelez-nous	-
*64443	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
*64444	154360501		Harness-wiring		Appelez-nous	-
*64445	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
