SELECT A DIAGRAM

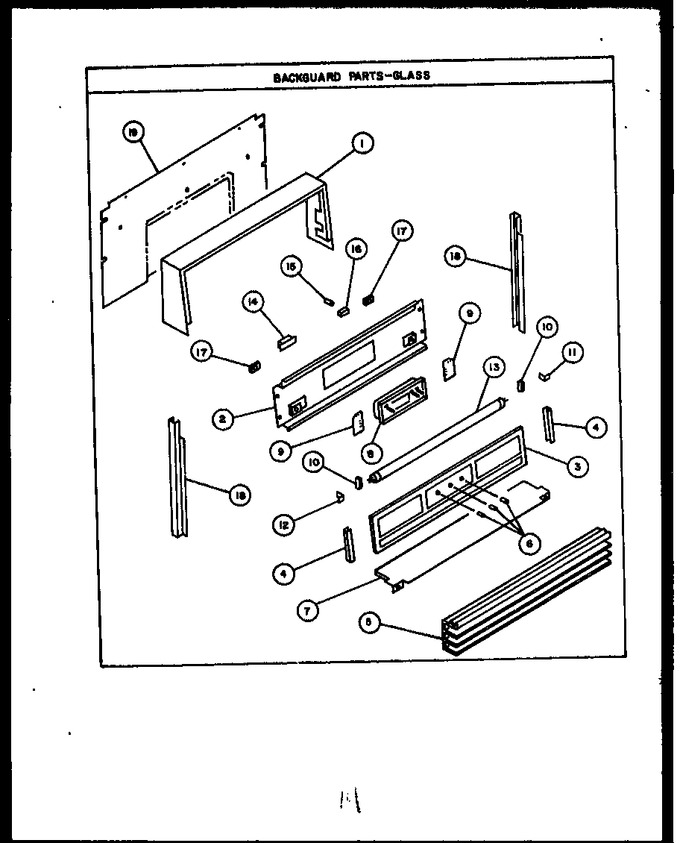

01 - Backguard Parts-glass


02 - Gas Components


03 - Lower Oven Cabinet Assy


04 - Lower Oven Electrical Components


05 - Lower Storage Drawer


06 - Oven Door Parts


07 - Page 1


08 - Upper Oven Electrical Components


09 - Upper Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0062987		Frame, Backguard		Appelez-nous	-
2	0063035		Support, Control Panel		Appelez-nous	-
3	0063154		Glass, Backguard		Appelez-nous	-
4	Y0062985		Channel, Glass		Appelez-nous	-
5	0062776		Sub 61800 Trim, Lower		Appelez-nous	-
6	0063441		Knob, Clock		Appelez-nous	-
7	W10125494		Heat Shield		Appelez-nous	-
8	0063419		Sub 61281, Clock, Automatic		Appelez-nous	-
9	W10125493		Mounting Plate, Clock		Appelez-nous	-
10	Y0071924		Light Socket		Appelez-nous	-
11	0062785		Sub 61242, Bracket, Lamp Rh		Appelez-nous	-
12	0062786		Sub 61241, Bracket,lamp Socket		Appelez-nous	-
13	WPY0067945		Lamp, Flourescent   (Replaces: Y0067945)				$ 29.33
14	Y0071869		Ballast		Appelez-nous	-
15	0071920		Starter, Flourescent		Appelez-nous	-
16	0071964		Socket, Starter		Appelez-nous	-
17	0065822		Light Indicator		Appelez-nous	-
18	Y0063691		Support, Backguard		Appelez-nous	-
19	Y0062790		Rear Cover Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
